Hood Latch and Components - Exploded View

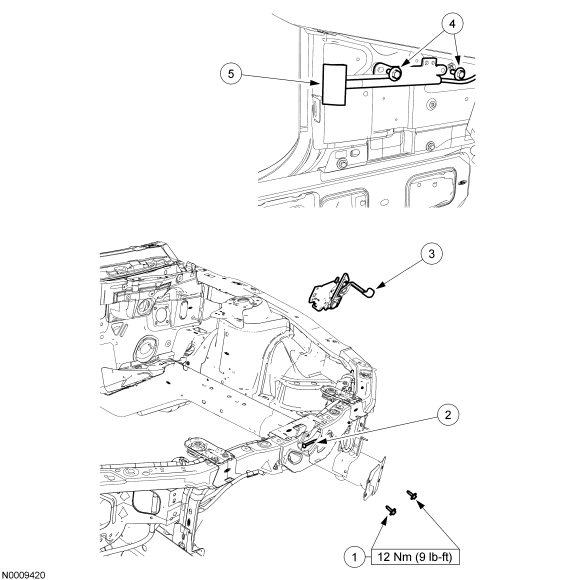

Fig 1: Exploded View Of Hood Latch & Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W611103	Hood latch bolts (2 required)
2	-	Hood latch release cable (part of 16916)
3	16700	Hood latch
4	N808727	Hood latch release handle screws (2 required)
5	16916	Hood latch release handle

1. For additional information, refer to appropriate procedures.
