Passive Anti-Theft System (PATS) Transceiver: Notes

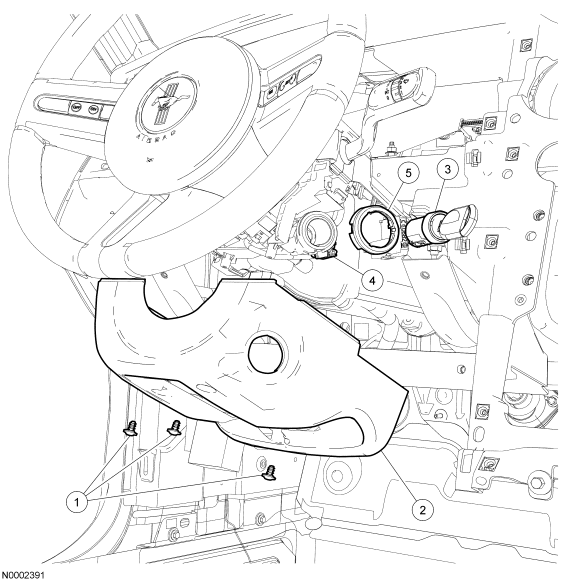

Fig 1: Identifying Passive Anti-Theft System (PATS) Transceiver
GF0016211Courtesy of FORD MOTOR CO.
Item Part Number Description
1 55929 Steering column shroud screws (3 required)
2 3K512 Lower steering column shroud
3 1153 Ignition lock cylinder
4 - PATS transceiver electrical connector (part of 14401)
5 15607 PATS transceiver
