Selector Lever Knob: Removal

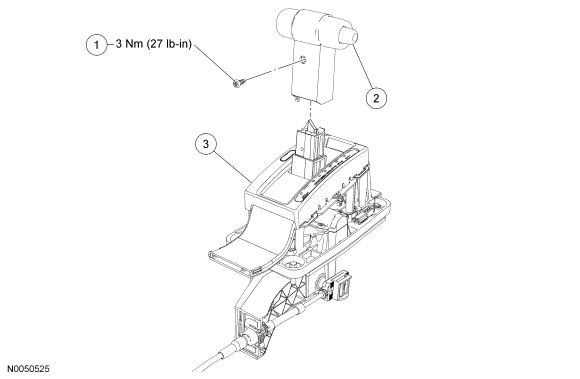

Fig 1: Exploded View Of Selector Lever Knob With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Transmission selector lever knob screw
2	7213	Transmission selector lever knob
3	7210	Transmission selector lever

Remove the transmission selector lever assembly. For additional information, refer to Selector Lever .
With the selector lever knob pulled to the rear, remove the screw from the knob base.

Fig 2: Locating Screw From Knob Base

Courtesy of FORD MOTOR CO.

Slide the knob up and off the selector shaft. Disconnect the transmission control (TC) switch electrical connector.
