Transmission Shift Selector Connector

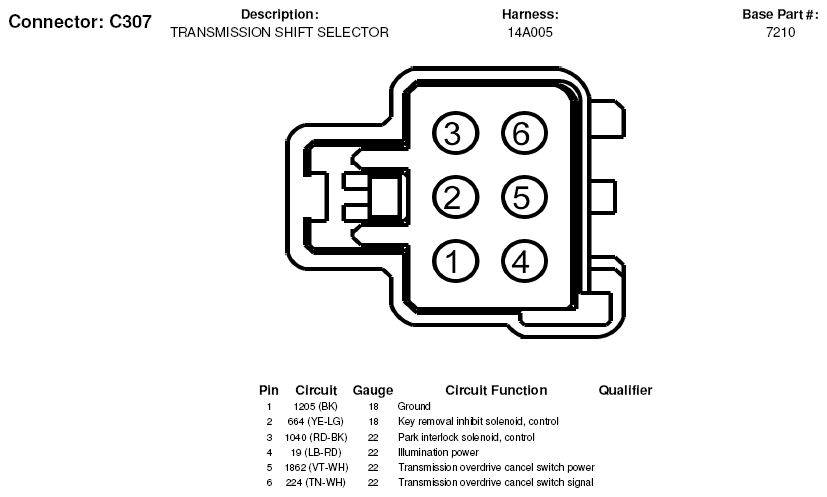

Fig 1: Transmission Shift Selector Connector End View (C307)

G05183227

Courtesy of FORD MOTOR CO.
