Side Impact Sensor Connectors

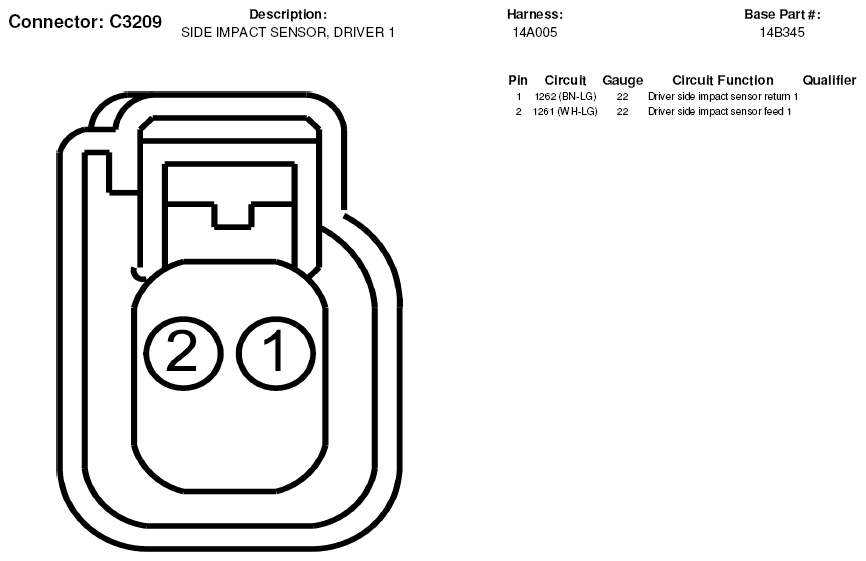

Fig 1: Side Impact Sensor Connector End View (C3209)
Courtesy of FORD MOTOR CO.

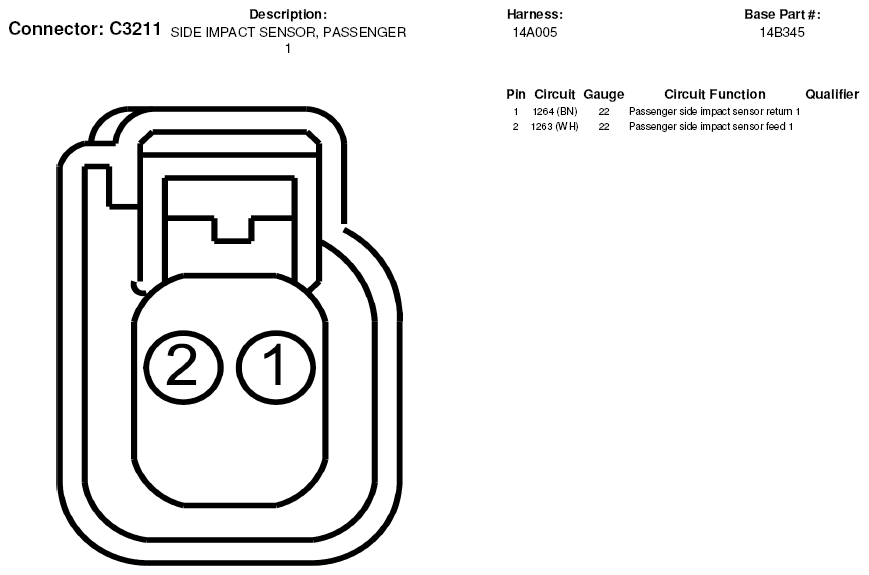

Fig 2: Side Impact Sensor Connector End View (C3211)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
