Rear Window Defrost Grid Connector

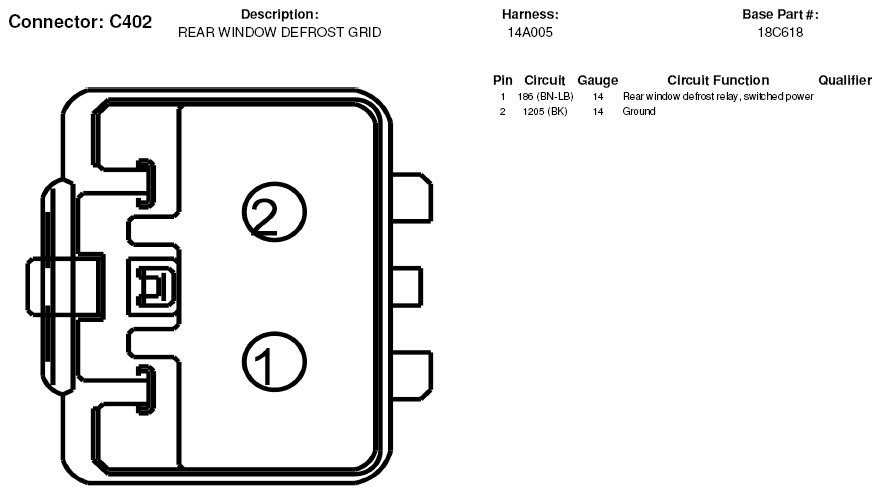

Fig 1: Rear Window Defrost Grid Connector End View (C402)
G05183244Courtesy of FORD MOTOR CO.
Fig 2: Rear Window Defrost Grid Connector End View (C402A)
G05183245Courtesy of FORD MOTOR CO.
Fig 3: Rear Window Defrost Grid Connector End View (C402B)
G05183246Courtesy of FORD MOTOR CO.
