Home >> Ford >> 2007 >> Mustang Base, 2D Convertible, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector Views >> Master Window Adjust Switch Connector

Master Window Adjust Switch Connector

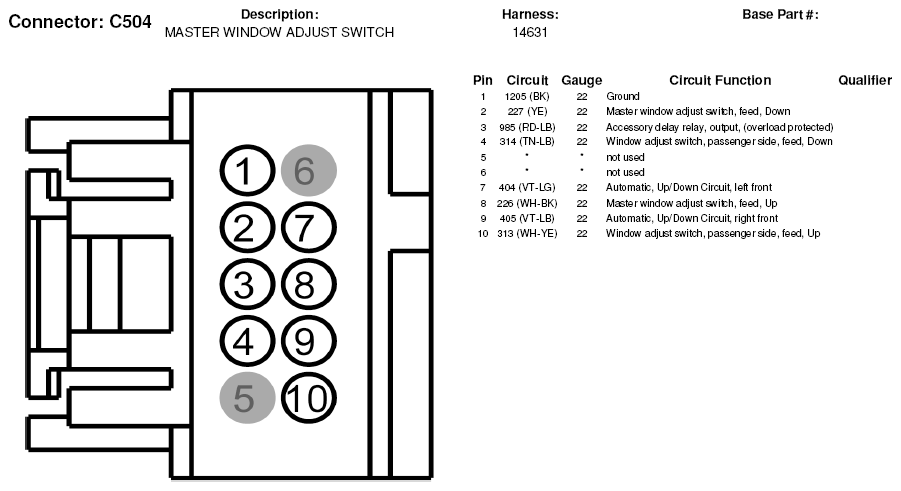

Fig 1: Master Window Adjust Switch Connector End View (C504)

G05183269

Courtesy of FORD MOTOR CO.
