Electronic Throttle Control Motor Connector

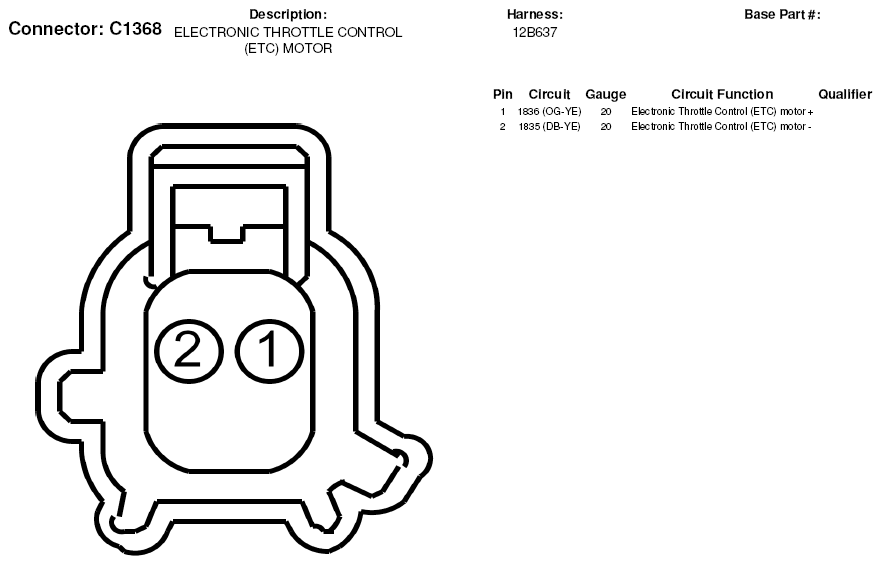

Fig 1: Electronic Throttle Control Motor Connector End View (C1368)

G05183329

Courtesy of FORD MOTOR CO.
