Register - Center, Fusion/Milan: Notes

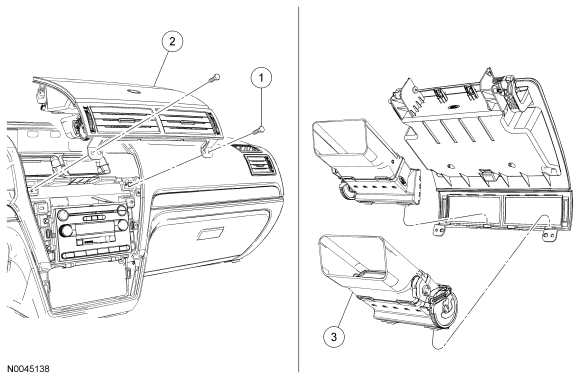

Fig 1: Exploded View Of Register - Center, Fusion/Milan
GF0030351Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Upper instrument panel storage bin screw (2 required)
2 5413594 Upper instrument panel storage bin
3 19893 Center instrument panel register (2 required)
