Compressor Manifold and Tube Assembly - 2.3L: Notes

Material

Item	Specification
PAG Refrigerant Compressor Oil (R-134a Systems) YN-12-D	WSH-M1C231-B

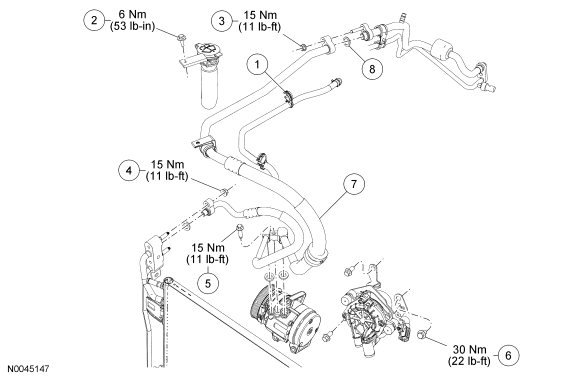

Fig 1: Exploded View Of Compressor Manifold & Tube Assembly With Torque Specifications - 2.3L

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Coolant reservoir hose retainer (2 required)
2	W505422	Washer reservoir filler neck bolt
3	W520413	Compressor manifold and tube suction fitting nut
4	W520413	Condenser inlet fitting nut
5	W701625	Compressor manifold bolt
6	W500032	Secondary air injection pump bolt (3 required)
7	19D734	Compressor manifold and tube assembly
8	19B596	Gasket seal (4 required)
