Starter Motor - 2.3L: Notes

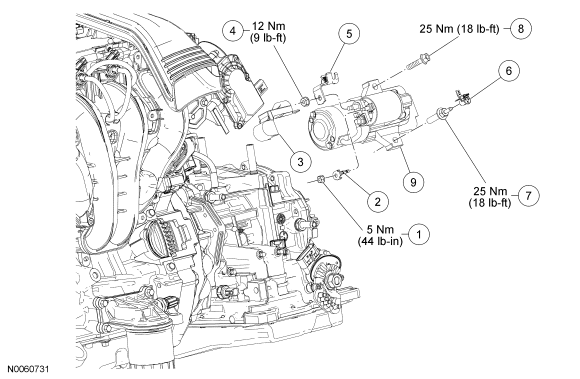

Fig 1: Exploded View Of Starter Motor With Torque Specifications - 2.3L
GF0029404Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N805320 Starter motor solenoid wire nut
2 14463 Starter motor solenoid wire (part of 12B637)
3 14603 Starter motor solenoid battery cable terminal cover
4 W706414 Starter motor solenoid battery cable nut
5 14463 Starter motor solenoid battery cable (part of 14B060)
6 14A169 Wire harness retainer (part of 12B637)
7 W706194 Starter motor stud bolt
8 W705877 Starter motor bolt
9 11000 Starter motor
