Removal And Installation: Horn: Notes

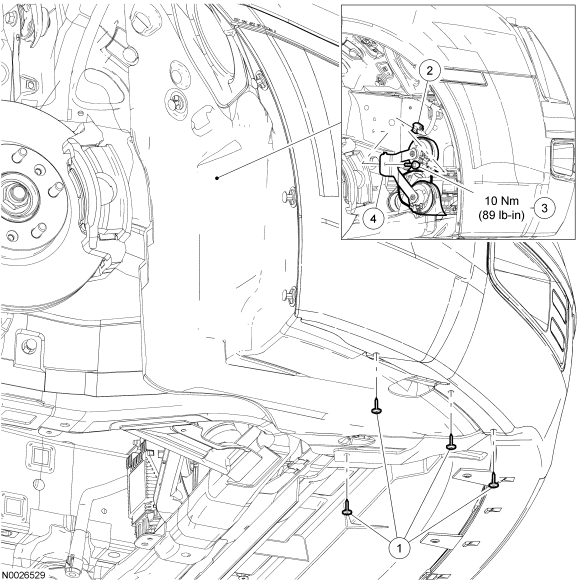

Fig 1: Exploded View Of Horn Components With Torque Specification

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W706805	RH front fender splash shield screws (4 required)
2	-	Horn electrical connector (part of 14290)
3	W605784	Horn bolt
4	13832	Horn
