Driver Door Module Connectors

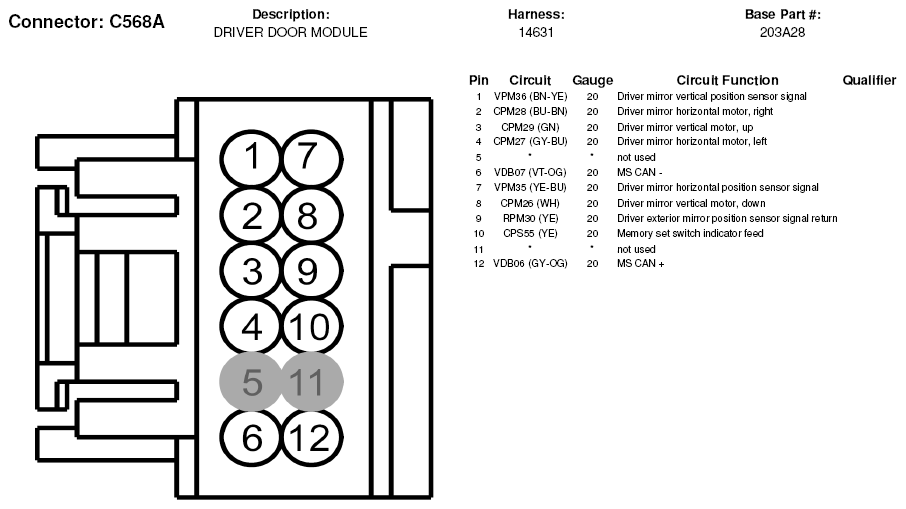

Fig 1: Driver Door Module Connector End View (C568A)

G05180723

Courtesy of FORD MOTOR CO.

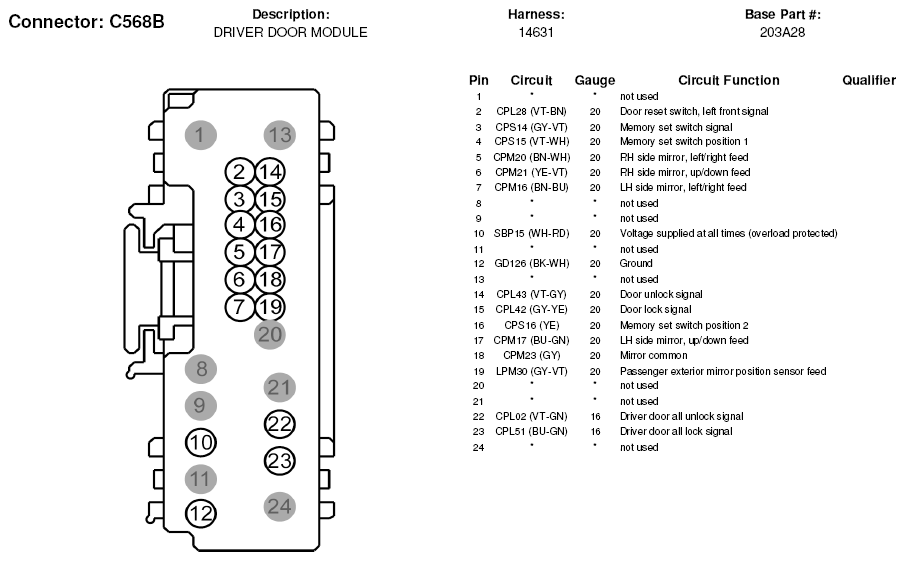

Fig 2: Driver Door Module Connector End View (C568B)

G05180724

Courtesy of FORD MOTOR CO.
