Active Torque Control Coupling Connector

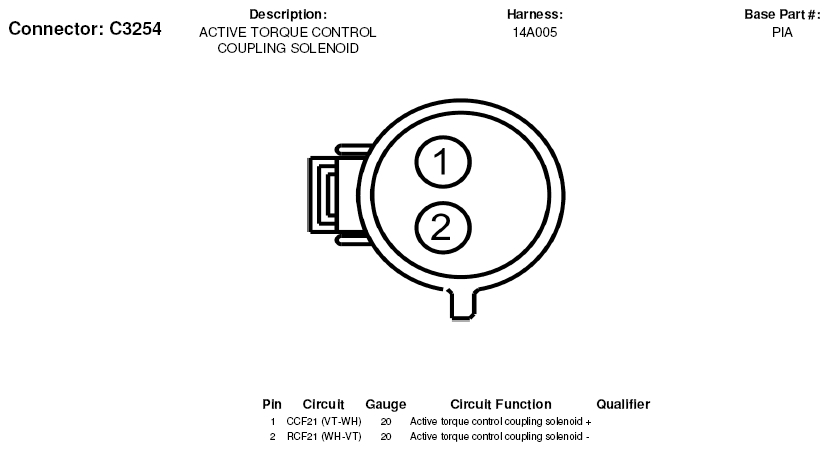

Fig 1: Active Torque Control Coupling Connector End View (C3254)

G05180874

Courtesy of FORD MOTOR CO.
