Transmission Control Module (TCM): Notes

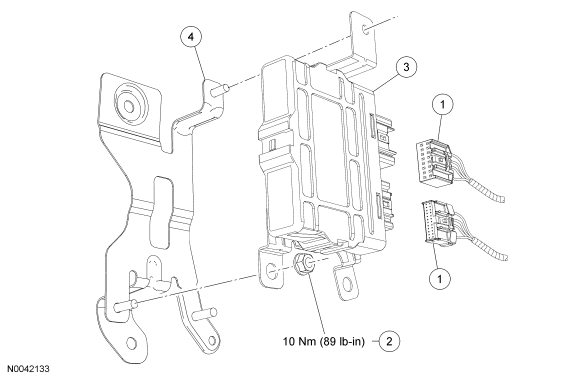

Fig 1: Exploded View Of Transmission Control Module (TCM) With Torque Specification
GF0029813Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14489 Transmission control module (TCM) electrical connectors
2 3M51 Nut
3 72369 TCM
4 - TCM mounting bracket
