Intermediate Shaft Speed Sensor: Notes

Material

Item Specification
Thread Sealant with PTFE
TA-24		 WSK-M2G350-A2

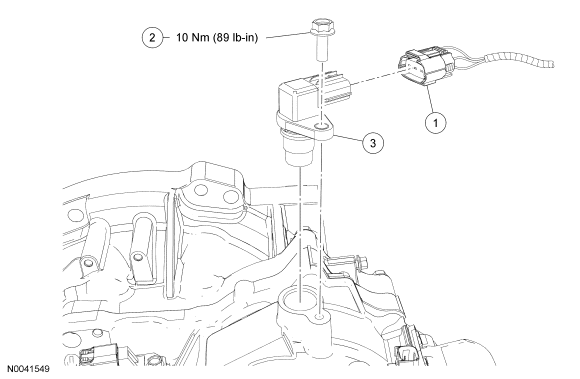

Fig 1: Exploded View Of Intermediate Shaft Speed Sensor With Torque Specification
GF0029795Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14A464 Intermediate shaft speed sensor electrical connector
2 S997840616 Bolt
3 7H103 Intermediate shaft speed sensor
