Child Safety Seat Tether Anchor: Notes

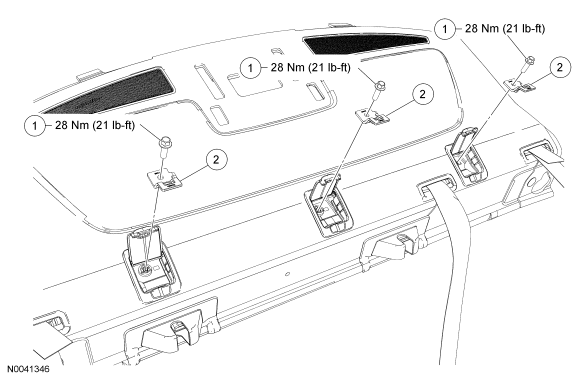

Fig 1: Exploded View Of Child Safety Seat Tether Anchor With Torque Specifications
GF0028562Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Bolts (part of 613D26)
2 613D26 Safety seat tether anchors
