Turn Lamp Connector

Fig 1: Turn Lamp Connector End View (C413)

G05180677

Courtesy of FORD MOTOR CO.

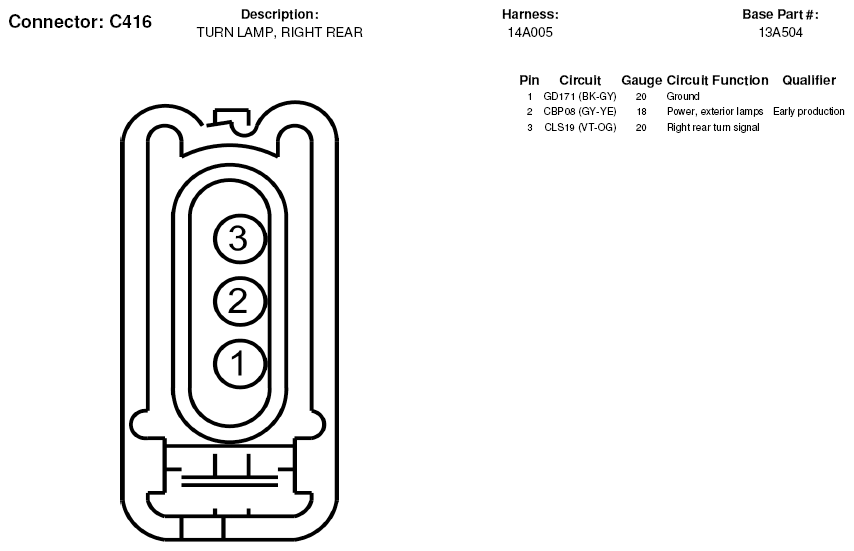

Fig 2: Turn Lamp Connector End View (C416)

G05180682

Courtesy of FORD MOTOR CO.
