Temperature Manifold Absolute Pressure Connector

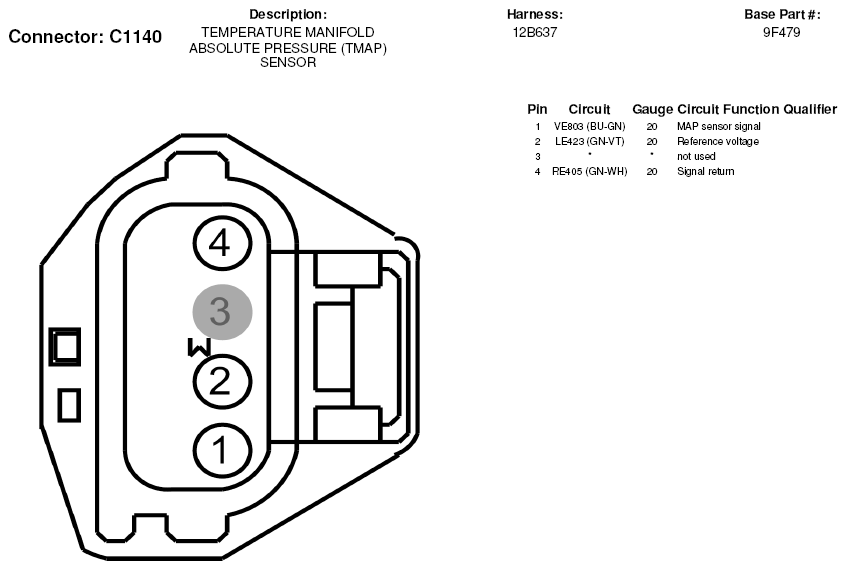

Fig 1: Temperature Manifold Absolute Pressure Connector End View (C1140)

G05180778

Courtesy of FORD MOTOR CO.
