Subwoofer Amplifier Connector
Subwoofer Amplifier Connector

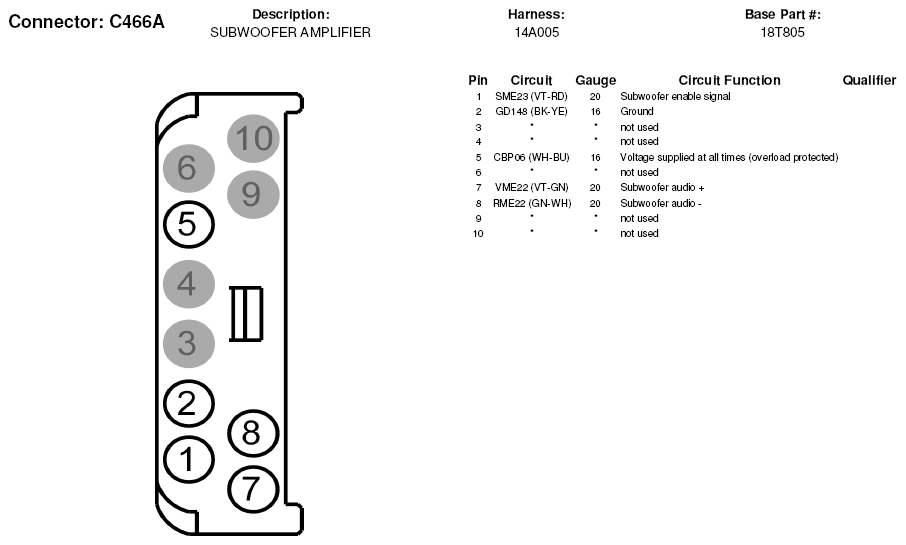

Fig 1: Subwoofer Amplifier Connector End View (C466A)
Courtesy of FORD MOTOR CO.

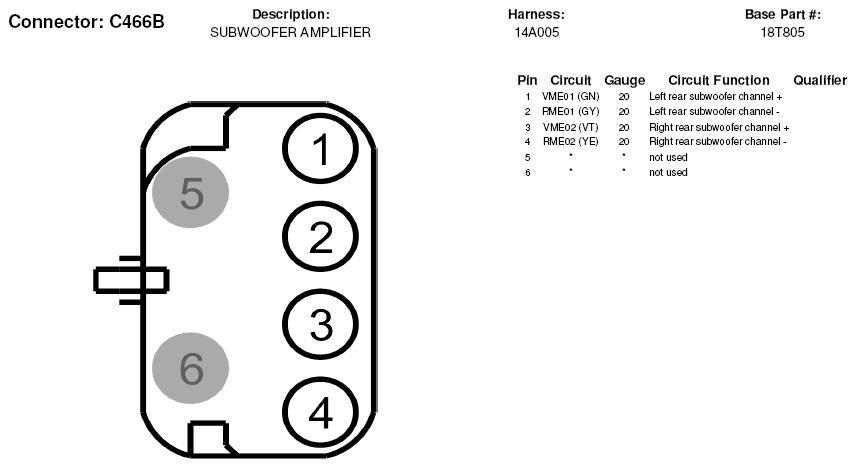

Fig 2: Subwoofer Amplifier Connector End View (C466B)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
