Recliner Motor Connector

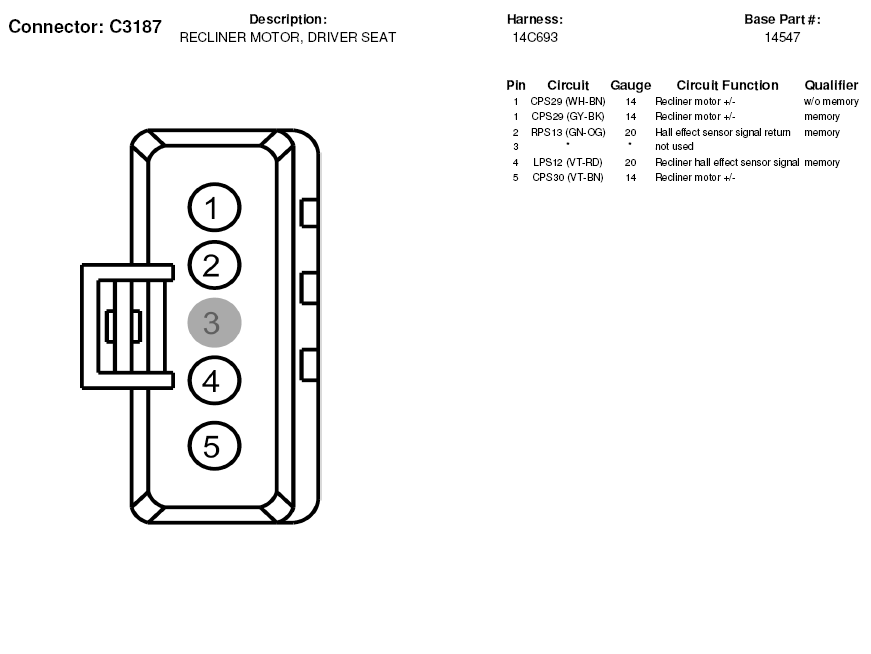

Fig 1: Recliner Motor Connector End View (C3187)

G05180863

Courtesy of FORD MOTOR CO.

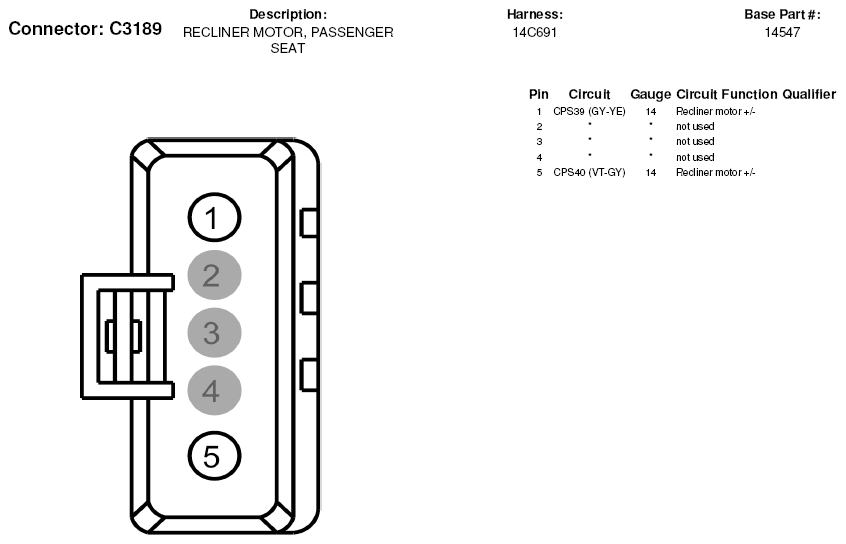

Fig 2: Recliner Motor Connector End View (C3189)

G05180864

Courtesy of FORD MOTOR CO.
