Clutch Pedal Speed Control Connector

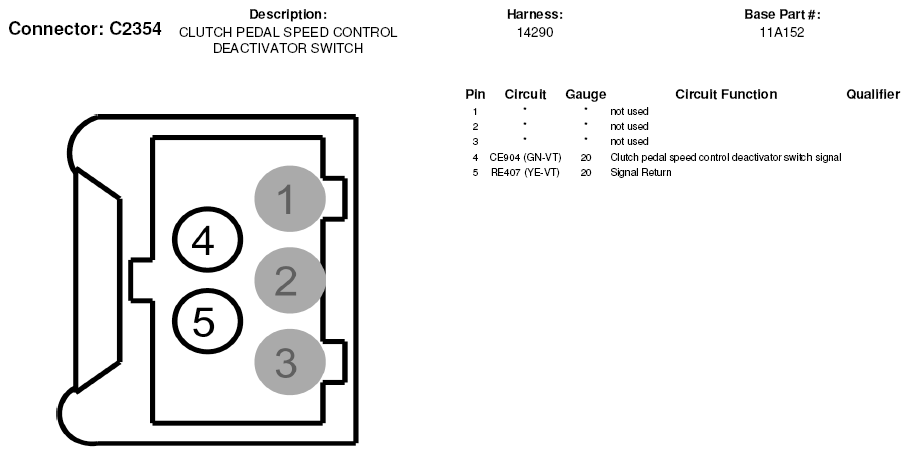

Fig 1: Clutch Pedal Speed Control Connector End View (C2354)

G05180838

Courtesy of FORD MOTOR CO.
