Engine Coolant Temperature Sensor Connector

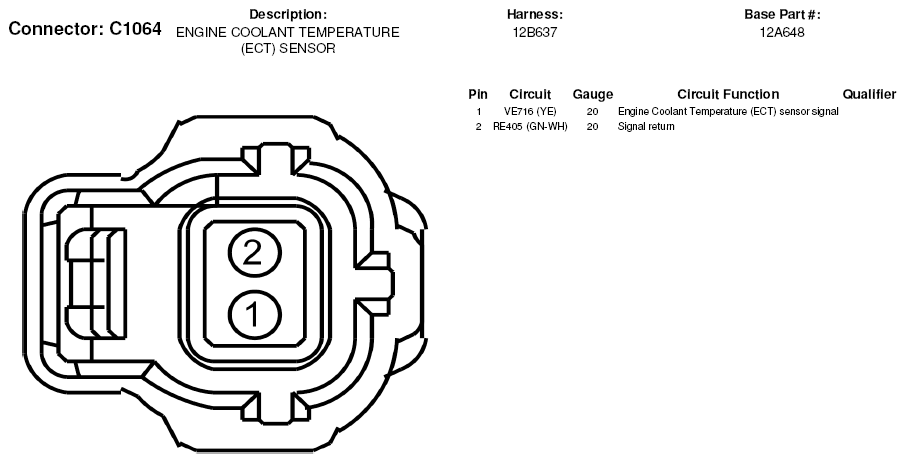

Fig 1: Engine Coolant Temperature Sensor Connector End View (C1064)

G05180767

Courtesy of FORD MOTOR CO.
