Smart Junction Box (SJB)
NOTE:
For component location, see ELECTRICAL COMPONENT LOCATOR
article.

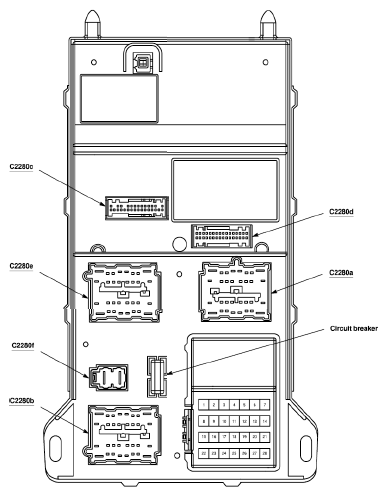

SMART JUNCTION BOX FUSE IDENTIFICATION LEGEND
| Fuse | Amps | Circuits protected |
|---|---|---|
| F1 | 10 | Reversing lamps, Electrochromatic inside mirror unit |
| F2 | 20 | Horn |
| F3 | 15 | Interior Lamps, Luggage compartment lamp, Glove box lamp, puddle lamps, Vanity mirror lamp |
| F4 | 15 | Park lamps, Side lamps, License plate lamps |
| F5 | - | not used |
| F6 | - | not used |
| F7 | - | not used |
| F8 | 30 | Heated rear window |
| F9 | 10 | Heated mirrors |
| F10 | 30 | Starter motor, Powertrain Control Module (PCM) |
| F11 | 15 | Headlamps - High beams |
| F12 | 7.5 | Audio Control Module (ACM), Roof opening panel, Power Door Locks Power windows, Electrochromatic inside mirror unit |
| F13 | 7.5 | Instrument Cluster (IC), Powertrain Control Module (PCM) Clock. HVAC-EMTC, HVAC-EATC, HVAC-DATC EVAP canister vent control solenoid, FNR5 transmission |
| F14 | 15 | Washer pump |
| F15 | 20 | Cigar lighter |
| F16 | 15 | Door lock actuator, Decklid release solenoid |
| F17 | 20 | Subwoofer amplifier |
| F18 | 20 | Audio Control Module (ACM), Data Link Connector (DLC) |
| F19 | 7.5 | not used |
| F20 | 7.5 | Power mirrors, Audio Digital Signal Processing (DSP) module, Driver Door Module (DDM) |
| F21 | 7.5 | Brake pedal position switch Stoplamps, High mounted stoplamp |
| F22 | 7.5 | Audio Control Module (ACM), Powertrain Control Module (PCM) |
| F23 | 7.5 | Wiper run/park relay, Instrument Cluster (IC), Blower motor relay |
| F24 | 7.5 | Occupant Classification System Module (OCSM), Hazard/PAD/Traction switch |
| F25 | 7.5 | Restraints control module (RCM) |
| F26 | 7.5 | Passive anti-theft transceiver module, Powertrain Control Module (PCM), 6 Speed transmission, Reversing lamps switch |
| F27 | 7.5 | Instrument Cluster (IC), HVAC-EMTC, HVAC-EATC, HVAC-DATC |
| F28 | 10 | Anti-lock Brake System (ABS) module, Heated seat module, Compass module |
| C/B | 30 | Power window motors, Accessory delay relay |
