Parking Aid Sensor Connector

Fig 1: Parking Aid Sensor Connector End View (C4009)
G05179657Courtesy of FORD MOTOR CO.

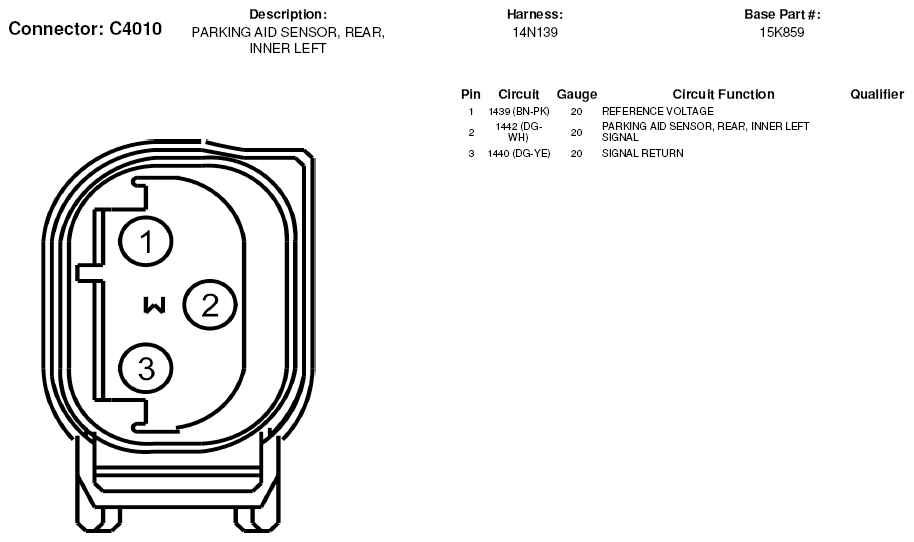

Fig 2: Parking Aid Sensor Connector End View (C4010)
G05179658Courtesy of FORD MOTOR CO.
Fig 3: Parking Aid Sensor Connector End View (C4011)
G05179659Courtesy of FORD MOTOR CO.
Fig 4: Parking Aid Sensor Connector End View (C4012)
G05179660Courtesy of FORD MOTOR CO.
