Window Adjust Switch Connectors

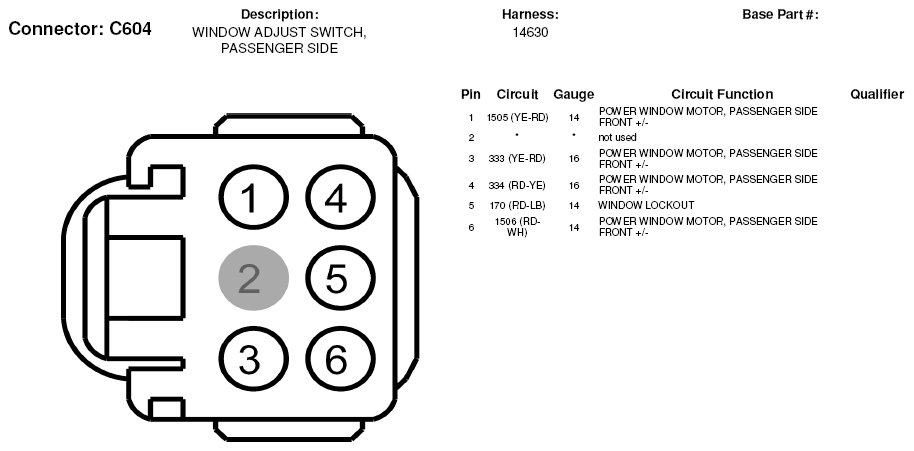

Fig 1: Window Adjust Switch Connector End View (C604)
G05179523Courtesy of FORD MOTOR CO.

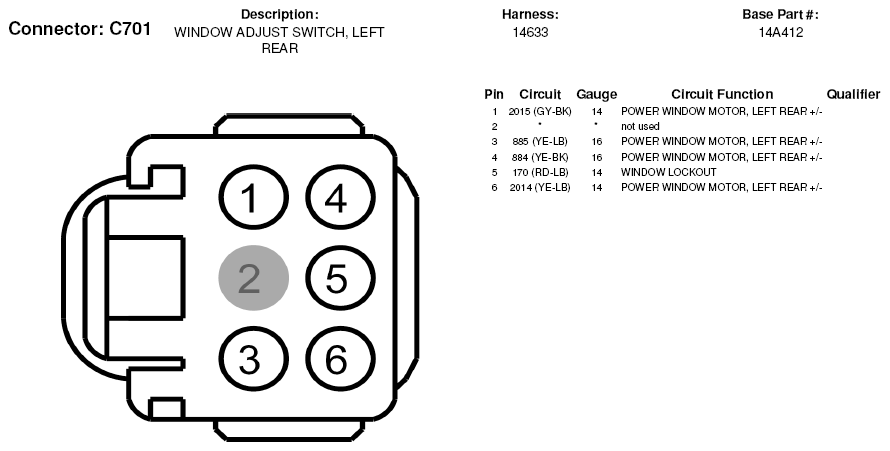

Fig 2: Window Adjust Switch Connector End View (C701)
G05179532Courtesy of FORD MOTOR CO.

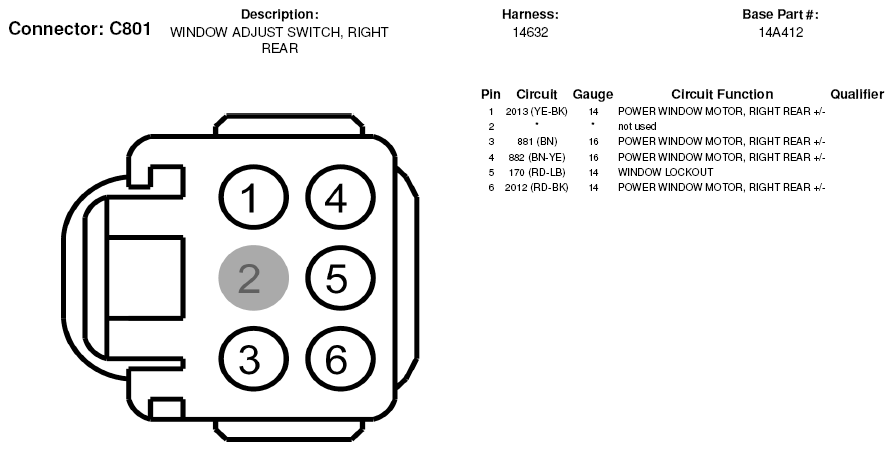

Fig 3: Window Adjust Switch Connector End View (C801)
G05179538Courtesy of FORD MOTOR CO.
