Side Impact Sensor Connectors

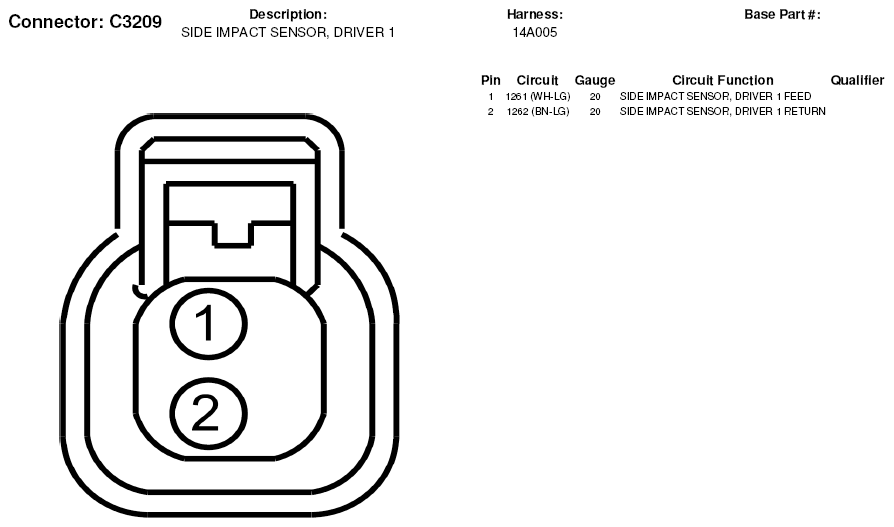

Fig 1: Side Impact Sensor Connector End View (C3209)
G05179637Courtesy of FORD MOTOR CO.

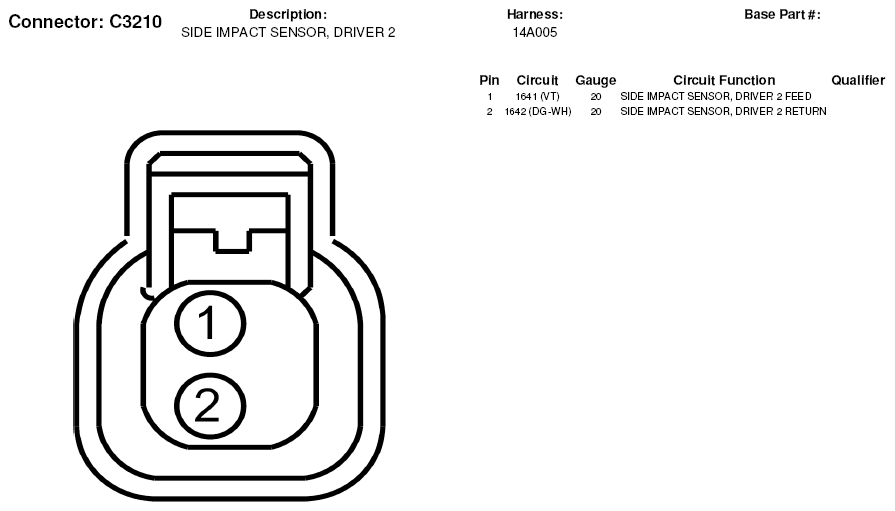

Fig 2: Side Impact Sensor Connector End View (C3210)
G05179638Courtesy of FORD MOTOR CO.

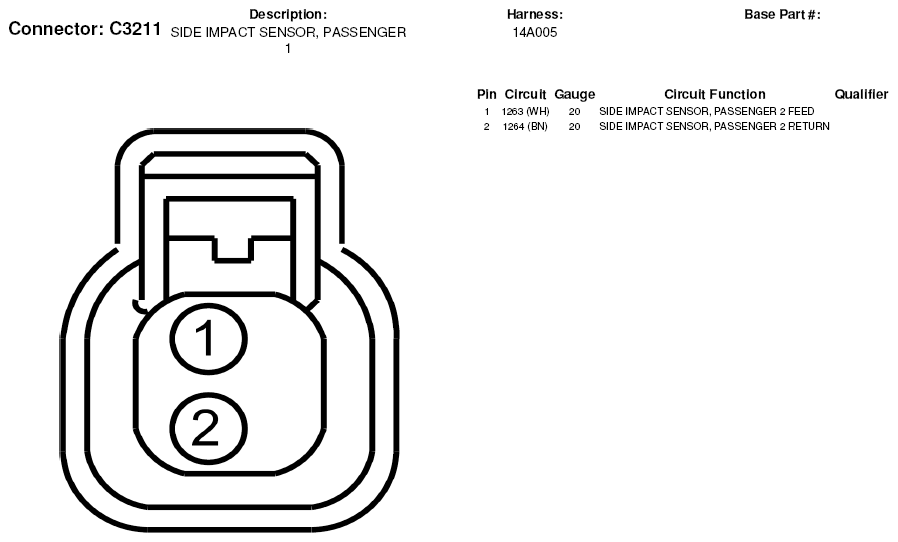

Fig 3: Side Impact Sensor Connector End View (C3211)
G05179639Courtesy of FORD MOTOR CO.

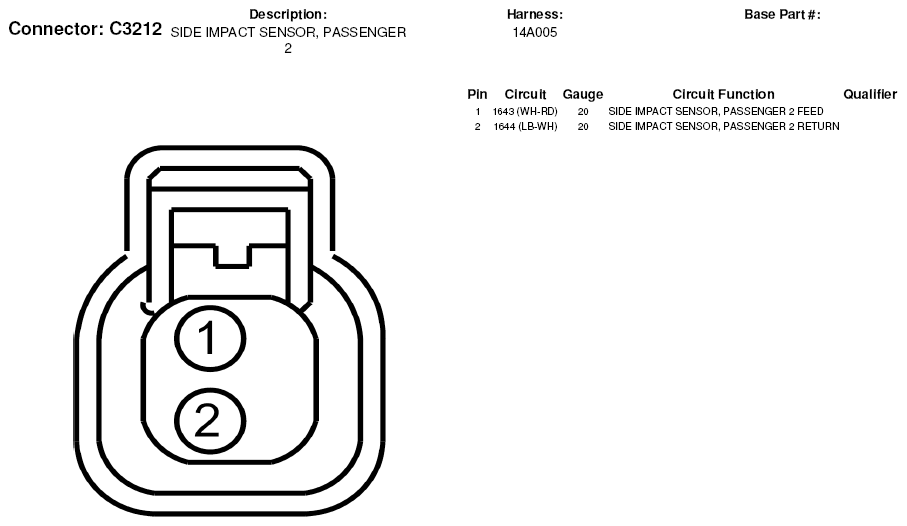

Fig 4: Side Impact Sensor Connector End View (C3212)
G05179640Courtesy of FORD MOTOR CO.
