Seat Adjust Switch Connectors

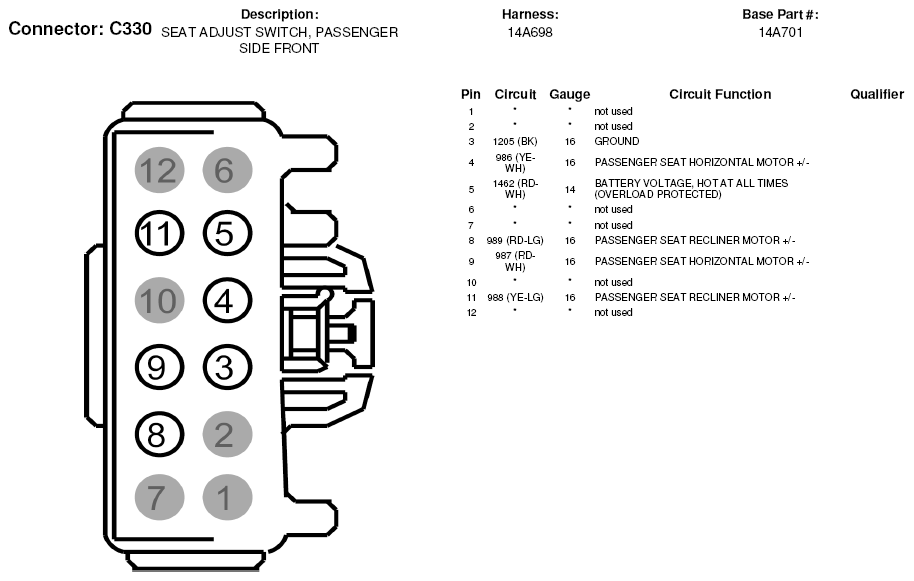

Fig 1: Seat Adjust Switch Connector End View (C330)
G05179468Courtesy of FORD MOTOR CO.

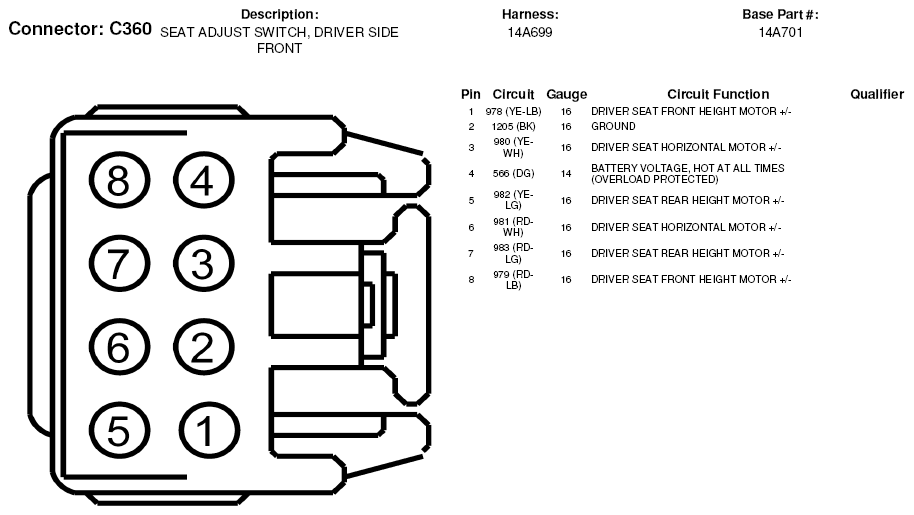

Fig 2: Seat Adjust Switch Connector End View (C360)
G05179480Courtesy of FORD MOTOR CO.

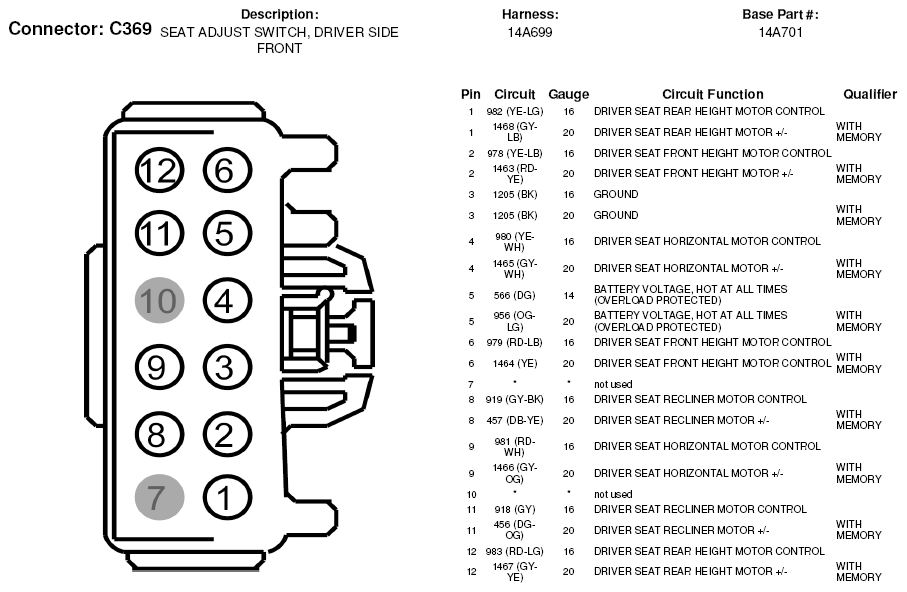

Fig 3: Seat Adjust Switch Connector End View (C369)
G05179485Courtesy of FORD MOTOR CO.

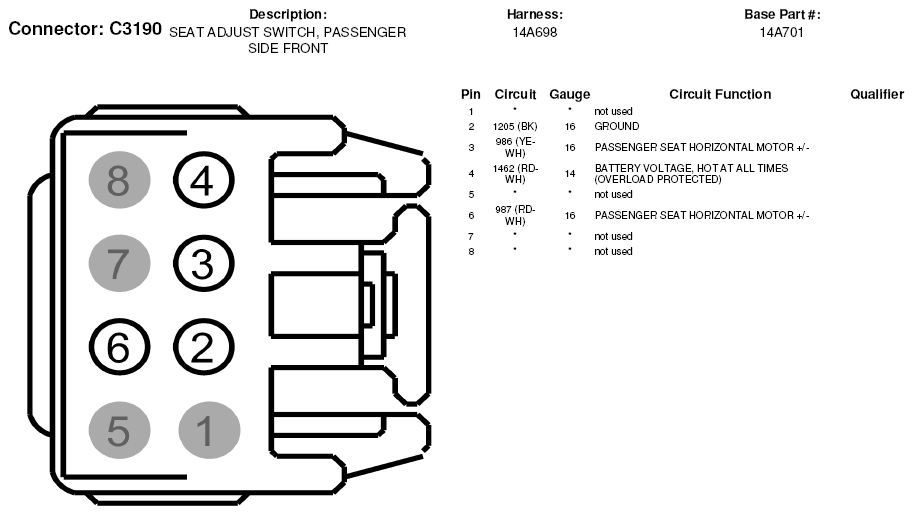

Fig 4: Seat Adjust Switch Connector End View (C3190)
G05179636Courtesy of FORD MOTOR CO.
