Power Window Motor Connectors

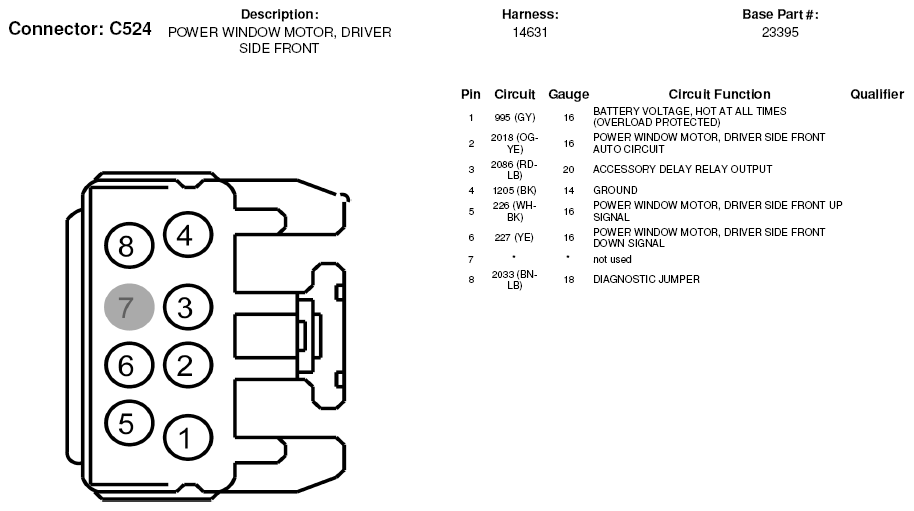

Fig 1: Power Window Motor Connector End View (C524)
G05179516Courtesy of FORD MOTOR CO.

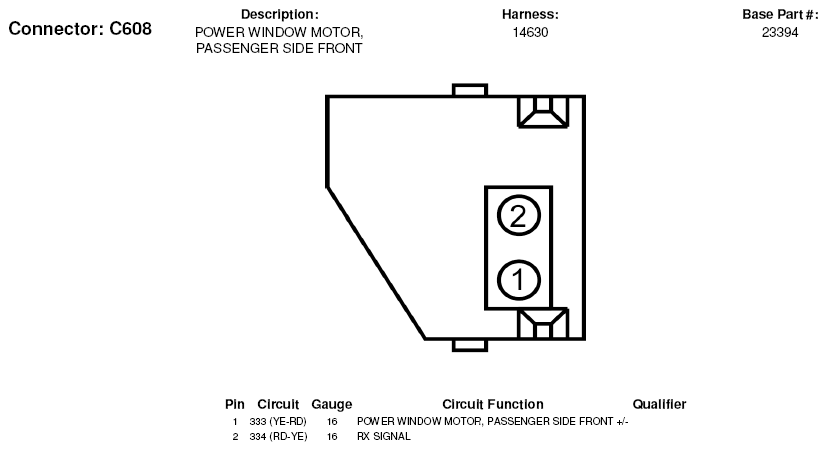

Fig 2: Power Window Motor Connector End View (C608)
G05179525Courtesy of FORD MOTOR CO.

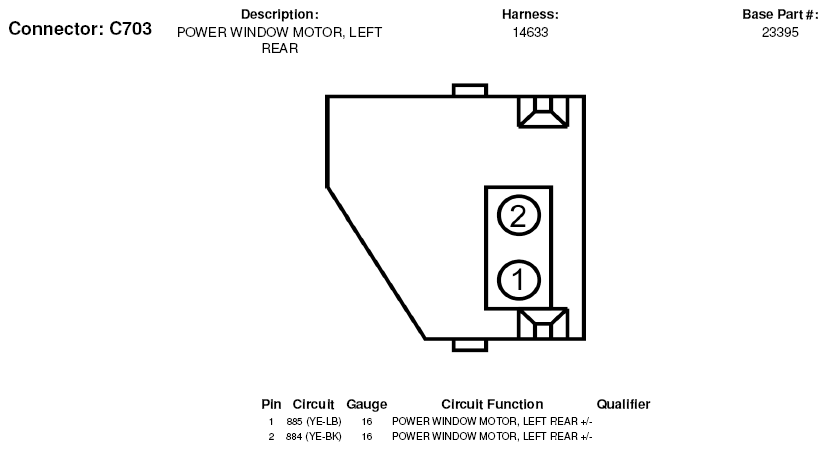

Fig 3: Power Window Motor Connector End View (C703)
G05179534Courtesy of FORD MOTOR CO.

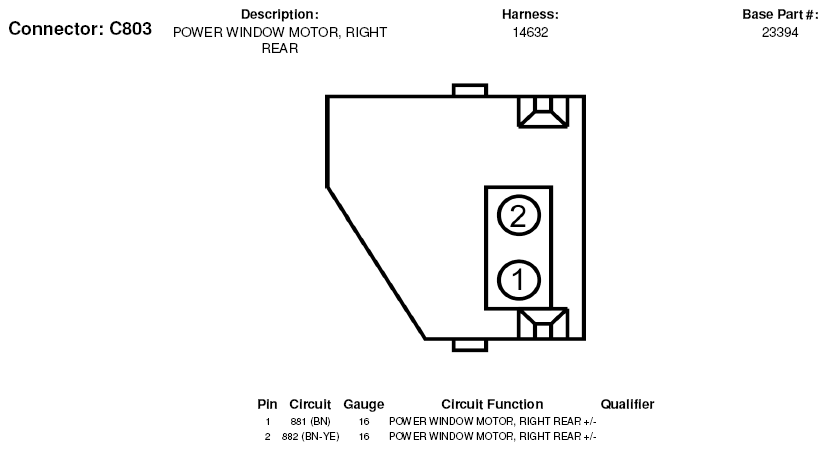

Fig 4: Power Window Motor Connector End View (C803)
G05179540Courtesy of FORD MOTOR CO.
