Led High Mounted Stoplamp Connector
Led High Mounted Stoplamp Connector

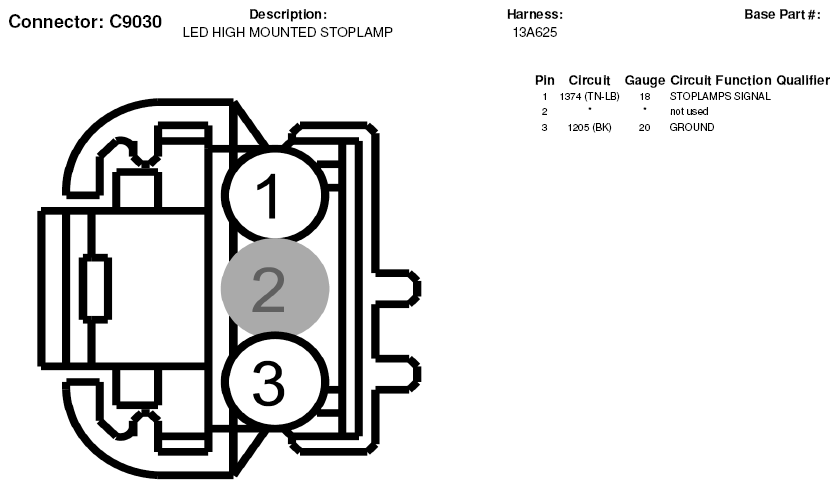

Fig 1: Led High Mounted Stoplamp Connector End View (C9030)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
