Inline Connectors

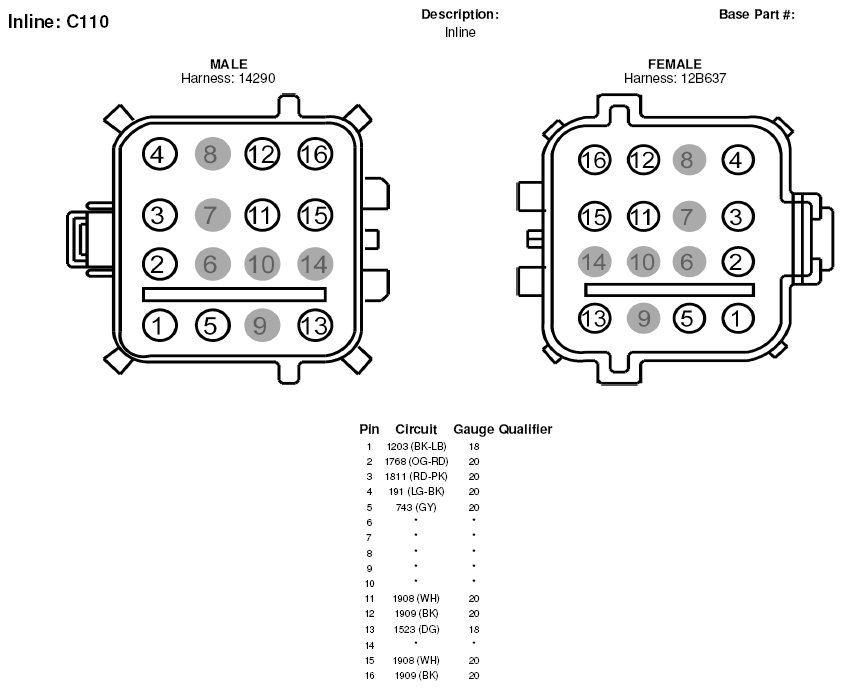

Fig 1: Inline Connector End View (C110)

G05179381

Courtesy of FORD MOTOR CO.

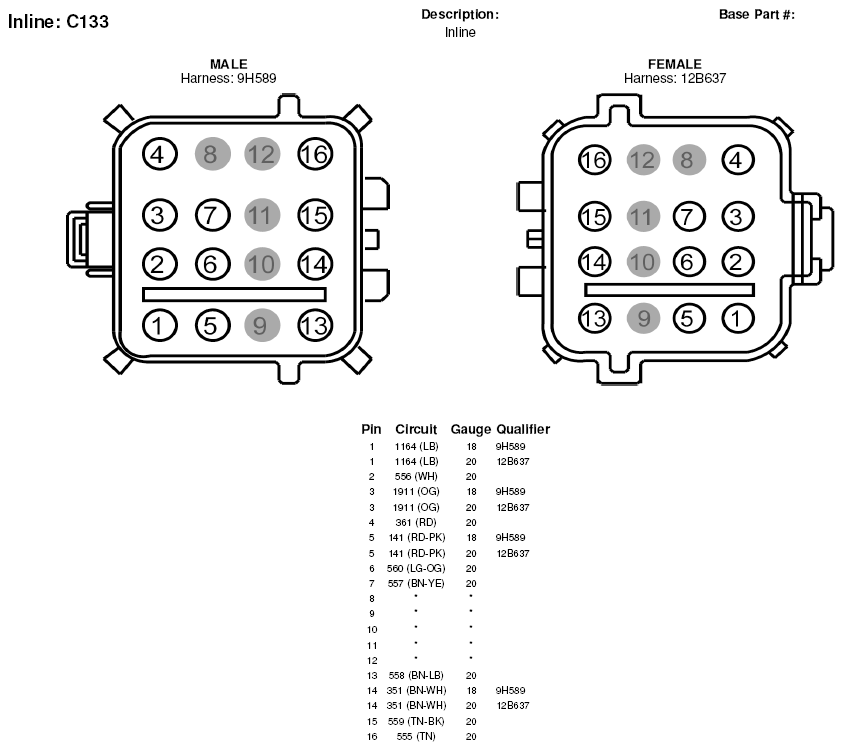

Fig 2: Inline Connector End View (C133)

G05179395

Courtesy of FORD MOTOR CO.

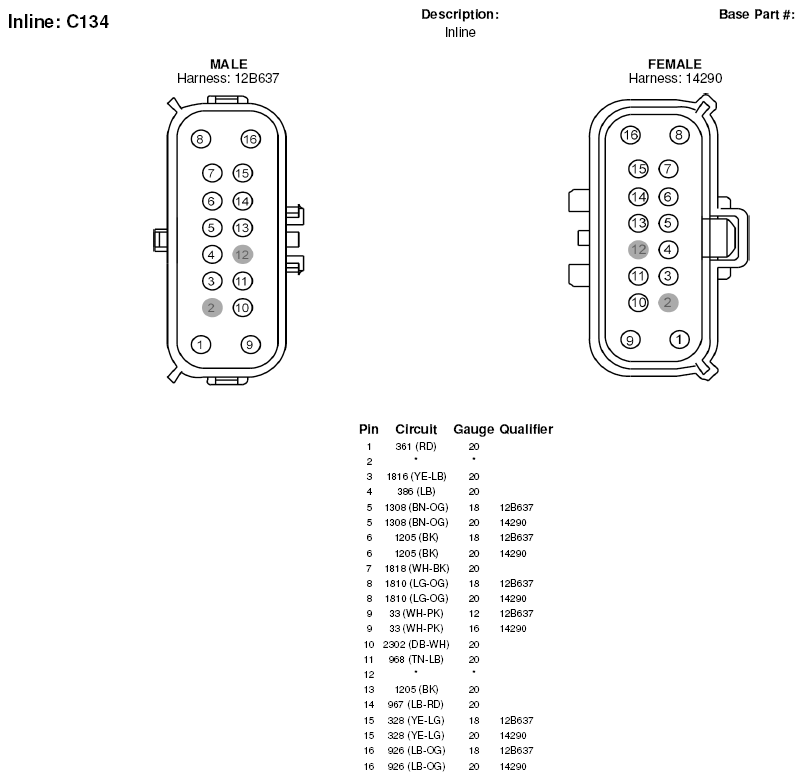

Fig 3: Inline Connector End View (C134)

G05179396

Courtesy of FORD MOTOR CO.

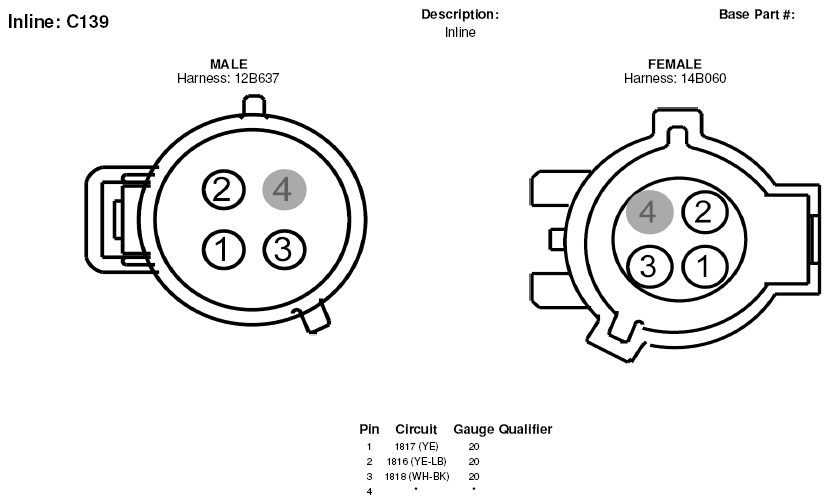

Fig 4: Inline Connector End View (C139)

G05179400

Courtesy of FORD MOTOR CO.

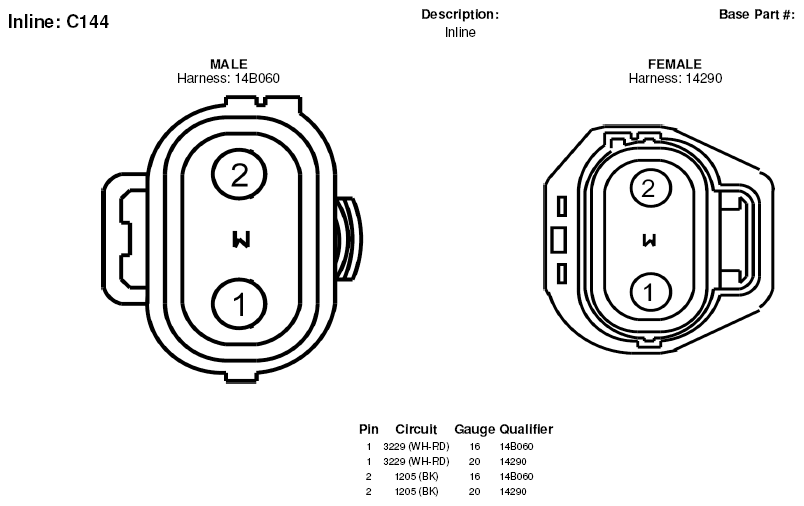

Fig 5: Inline Connector End View (C144)

G05179403

Courtesy of FORD MOTOR CO.

Fig 6: Inline Connector End View (C210) (1 Of 2)

G05179431

Courtesy of FORD MOTOR CO.

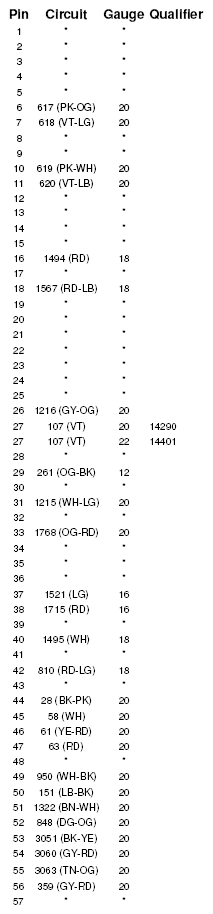

Fig 7: Inline Connector End View (C210) (2 Of 2)

G05179432

Courtesy of FORD MOTOR CO.

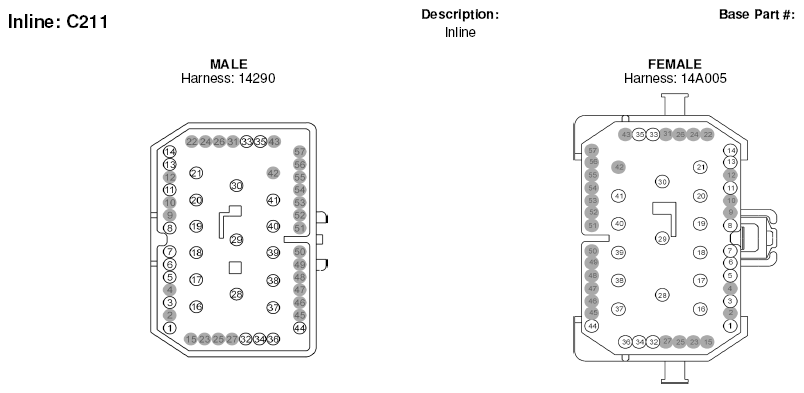

Fig 8: Inline Connector End View (C211) (1 Of 2)

G05179433

Courtesy of FORD MOTOR CO.

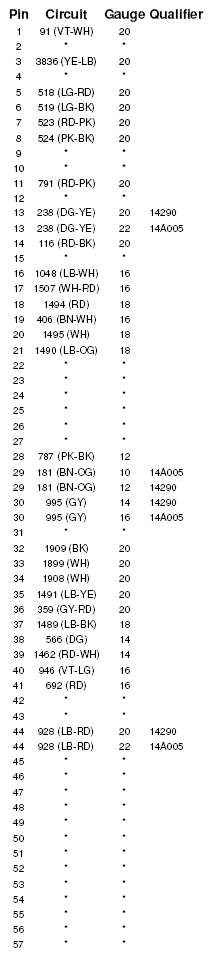

Fig 9: Inline Connector End View (C211) (2 Of 2)

G05179434

Courtesy of FORD MOTOR CO.

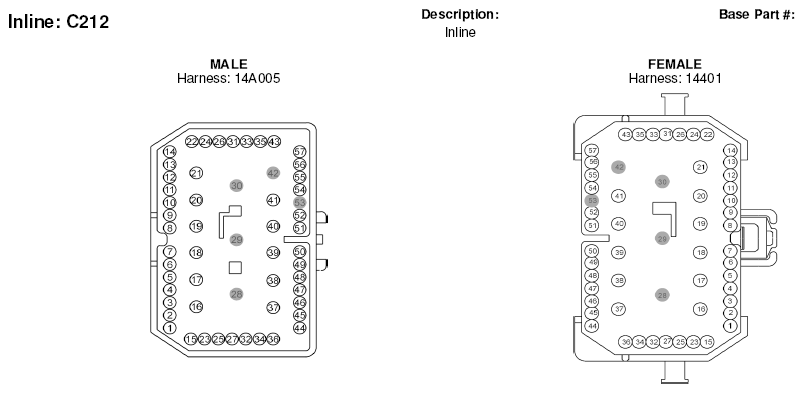

Fig 10: Inline Connector End View (C212) (1 Of 2)

G05179435

Courtesy of FORD MOTOR CO.

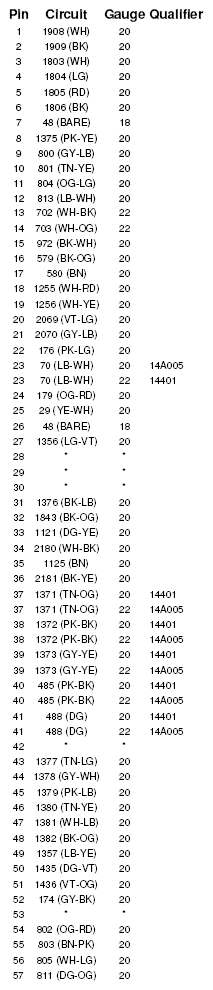

Fig 11: Inline Connector End View (C212) (2 Of 2)

G05179436

Courtesy of FORD MOTOR CO.

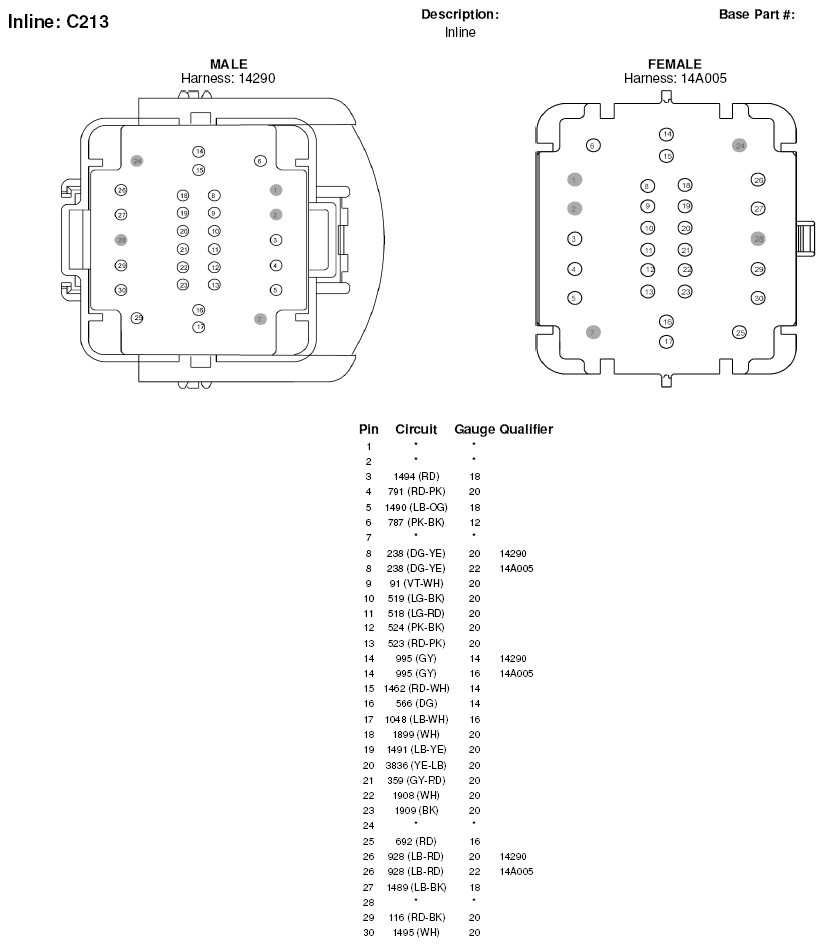

Fig 12: Inline Connector End View (C213)

G05179437

Courtesy of FORD MOTOR CO.

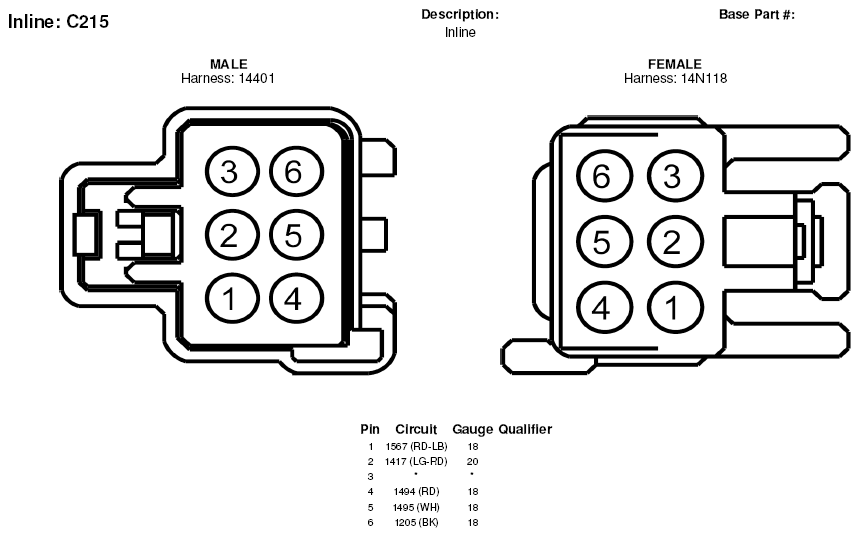

Fig 13: Inline Connector End View (C215)

G05179438

Courtesy of FORD MOTOR CO.

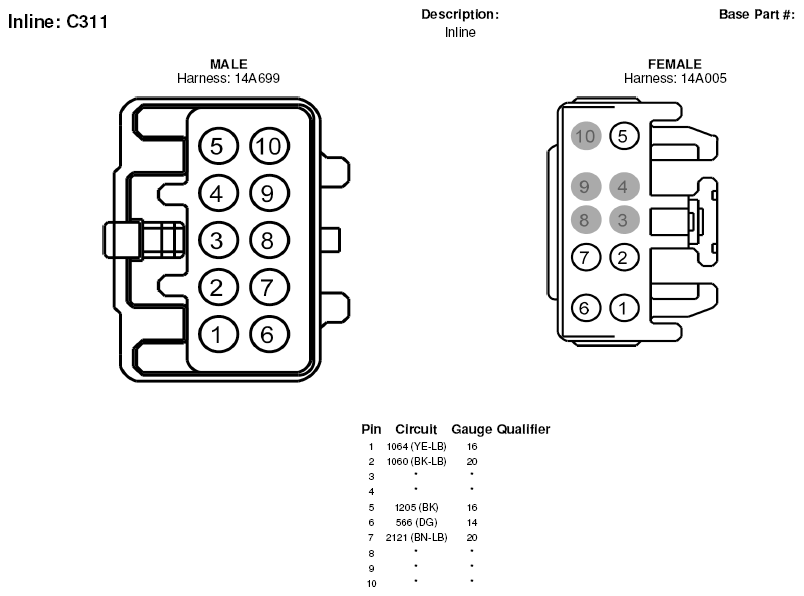

Fig 14: Inline Connector End View (C311)

G05179463

Courtesy of FORD MOTOR CO.

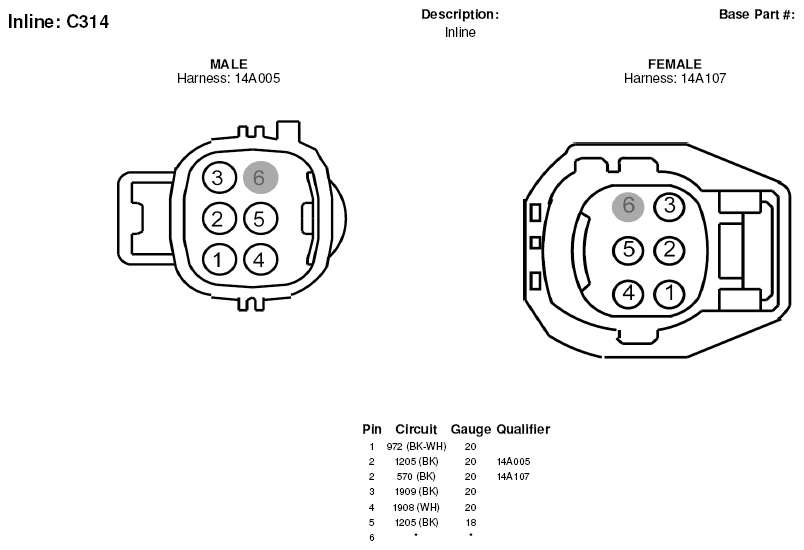

Fig 15: Inline Connector End View (C314)

G05179464

Courtesy of FORD MOTOR CO.

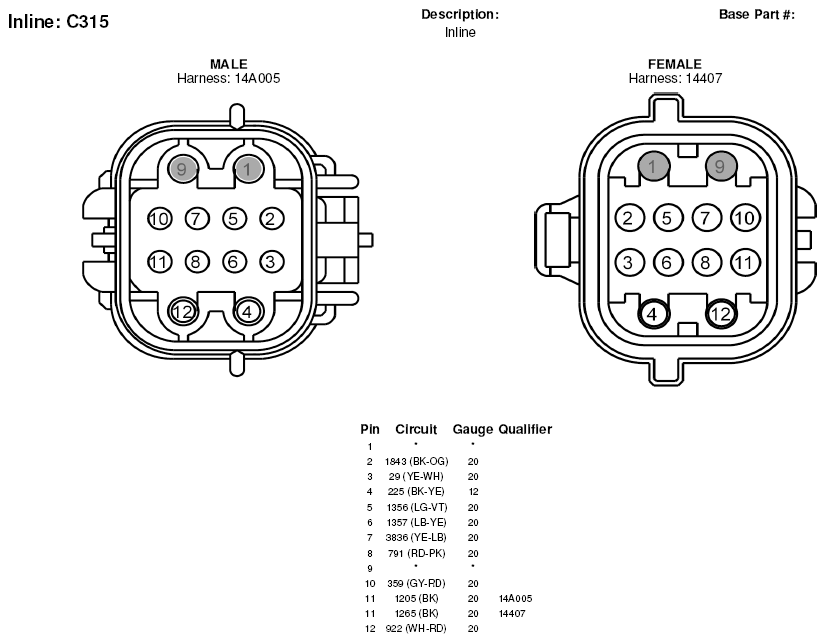

Fig 16: Inline Connector End View (C315)

G05179465

Courtesy of FORD MOTOR CO.

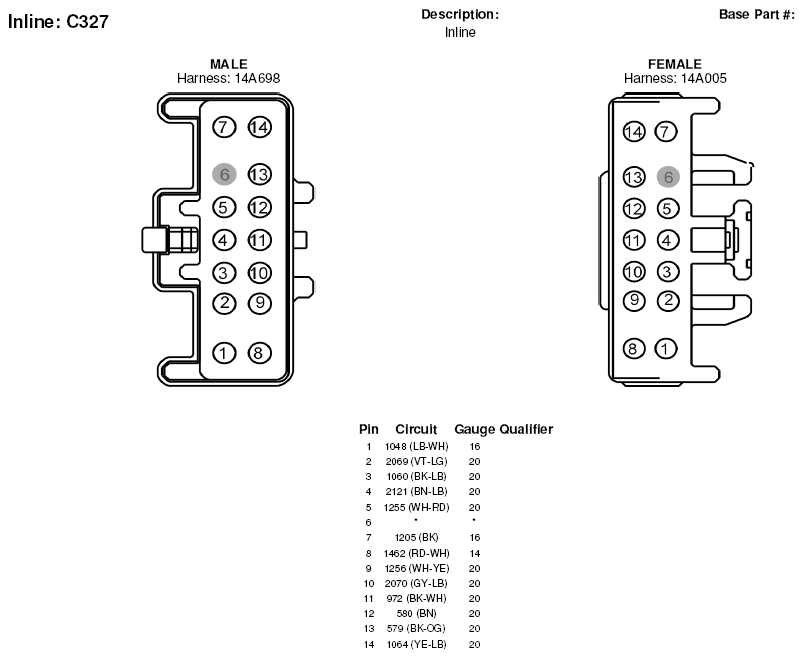

Fig 17: Inline Connector End View (C327)

G05179466

Courtesy of FORD MOTOR CO.

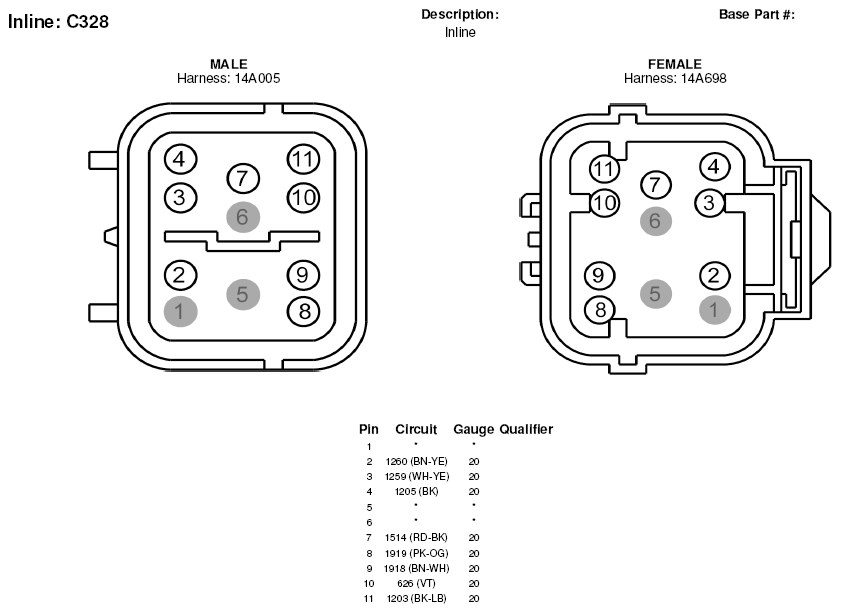

Fig 18: Inline Connector End View (C328)

G05179467

Courtesy of FORD MOTOR CO.

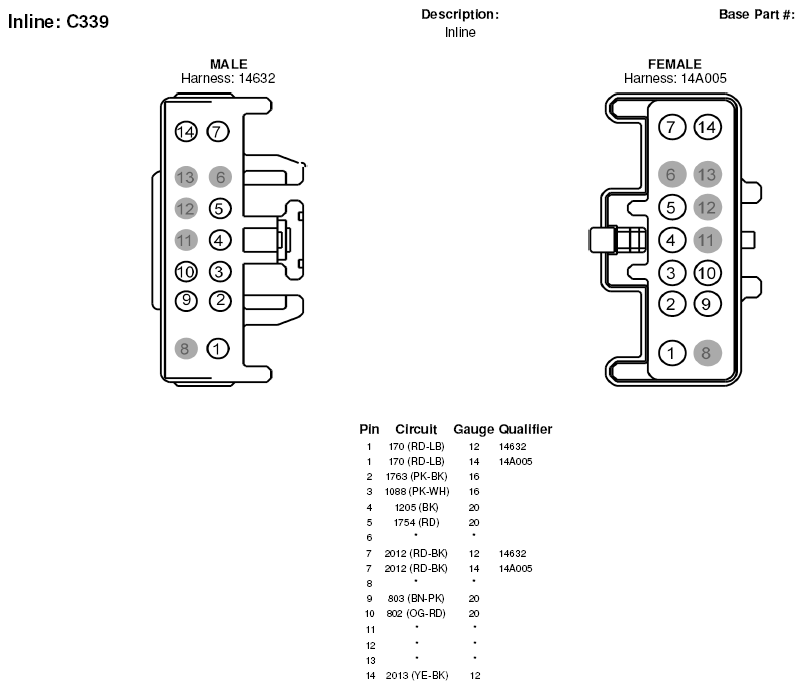

Fig 19: Inline Connector End View (C339)

G05179472

Courtesy of FORD MOTOR CO.

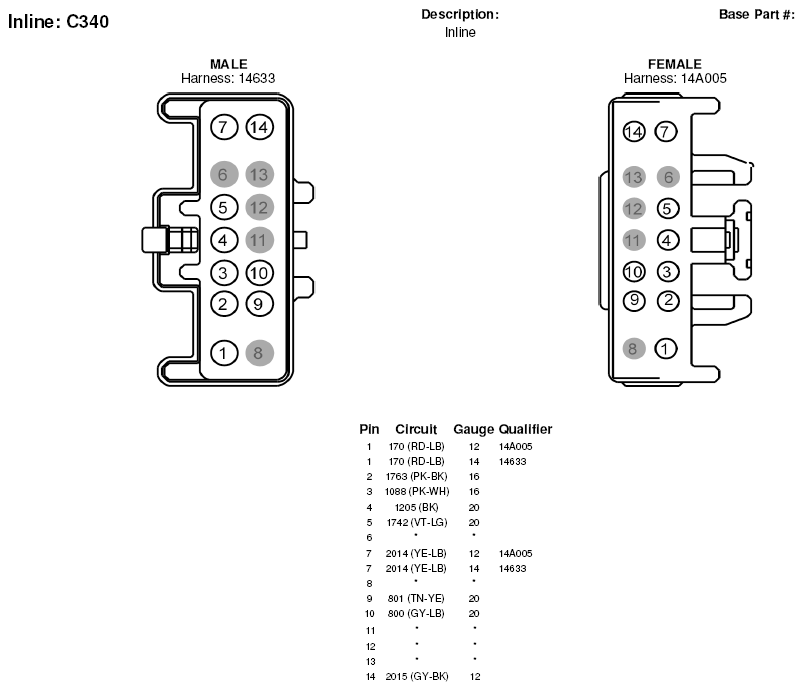

Fig 20: Inline Connector End View (C340)

G05179473

Courtesy of FORD MOTOR CO.

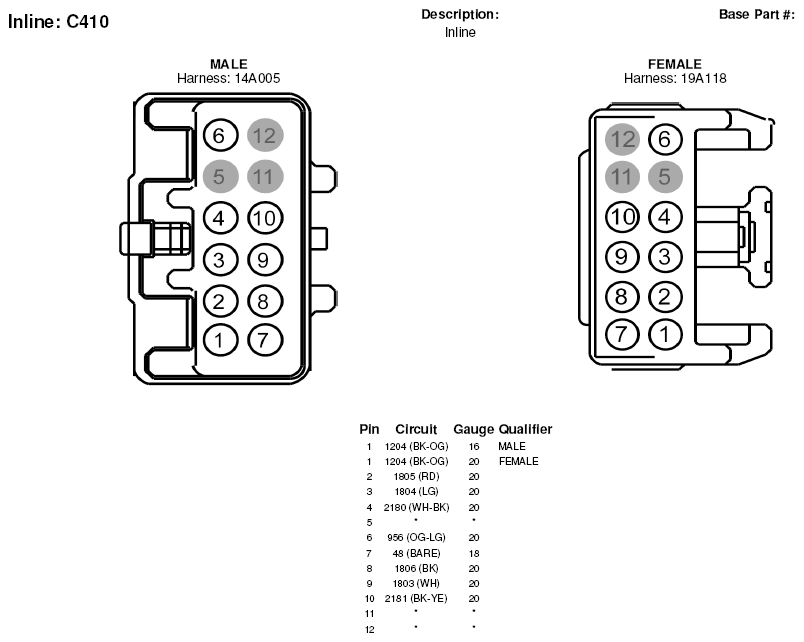

Fig 21: Inline Connector End View (C410)

G05179492

Courtesy of FORD MOTOR CO.

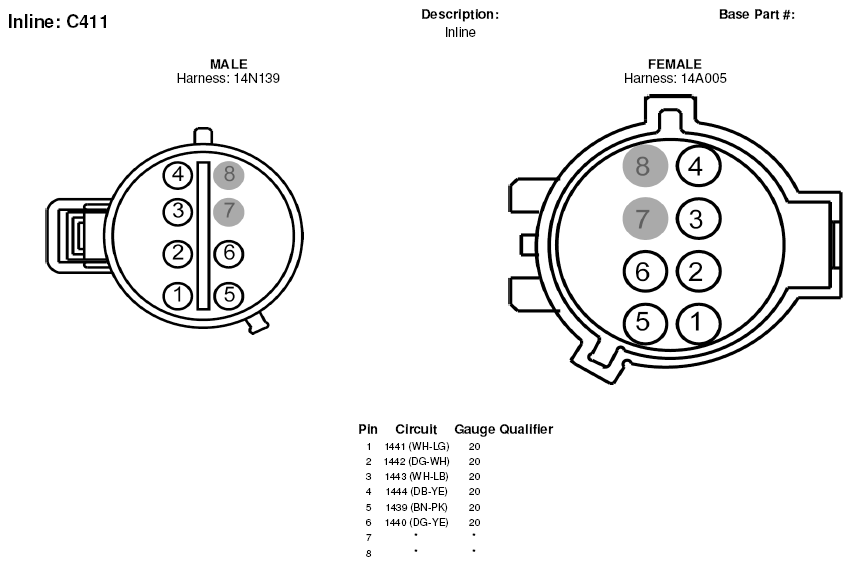

Fig 22: Inline Connector End View (C411)

G05179493

Courtesy of FORD MOTOR CO.

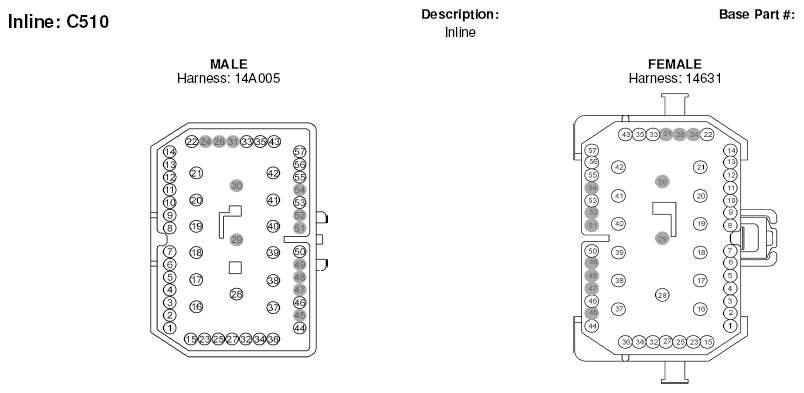

Fig 23: Inline Connector End View (C510) (1 Of 3)

G05179510

Courtesy of FORD MOTOR CO.

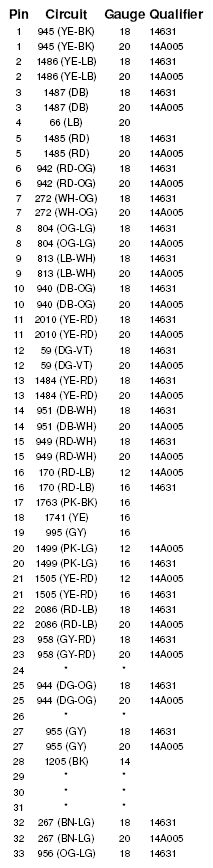

Fig 24: Inline Connector End View (C510) (2 Of 3)

G05179511

Courtesy of FORD MOTOR CO.

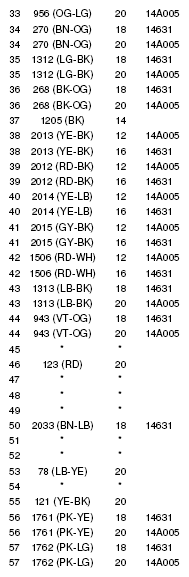

Fig 25: Inline Connector End View (C510) (3 Of 3)

G05179512

Courtesy of FORD MOTOR CO.

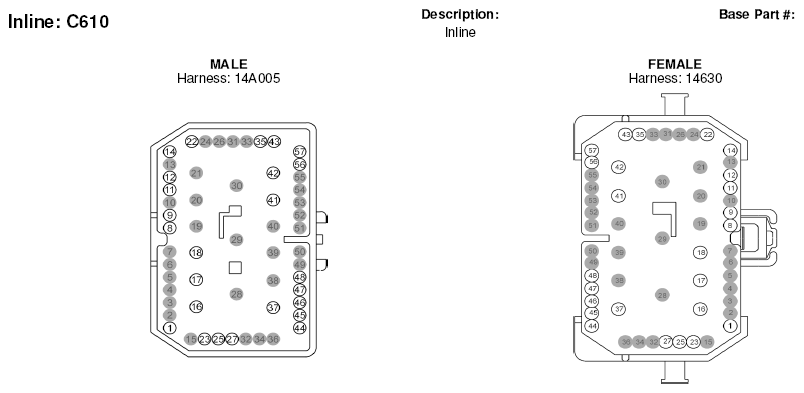

Fig 26: Inline Connector End View (C610) (1 Of 3)

G05179526

Courtesy of FORD MOTOR CO.

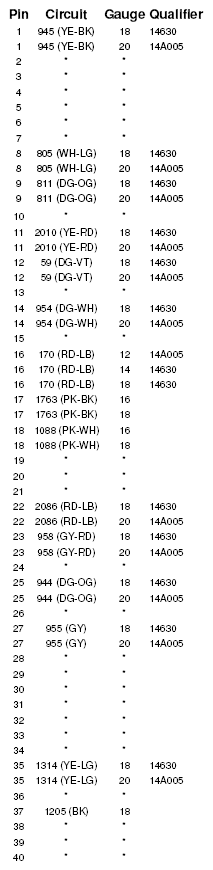

Fig 27: Inline Connector End View (C610) (2 Of 3)

G05179527

Courtesy of FORD MOTOR CO.

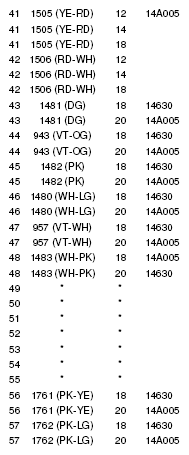

Fig 28: Inline Connector End View (C610) (3 Of 3)

G05179528

Courtesy of FORD MOTOR CO.

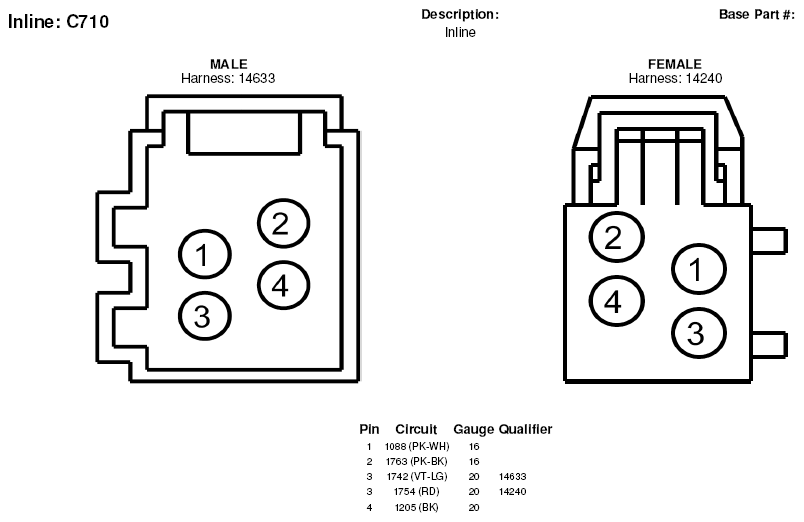

Fig 29: Inline Connector End View (C710)

G05179536

Courtesy of FORD MOTOR CO.

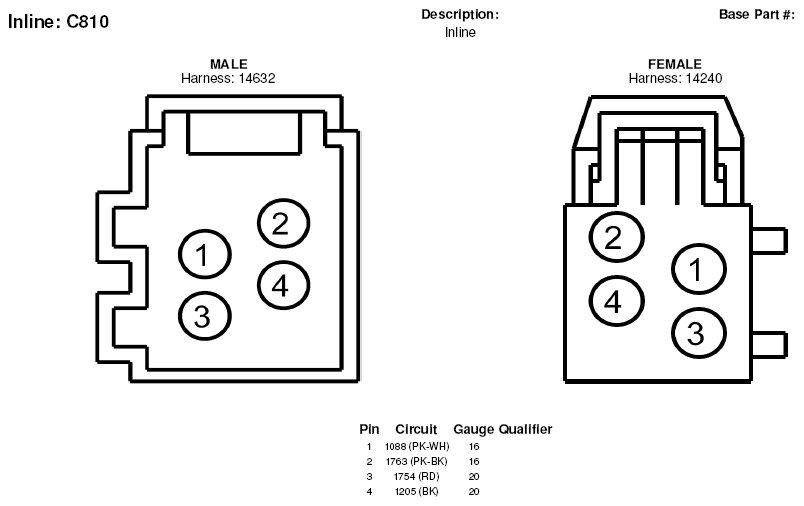

Fig 30: Inline Connector End View (C810)

G05179542

Courtesy of FORD MOTOR CO.

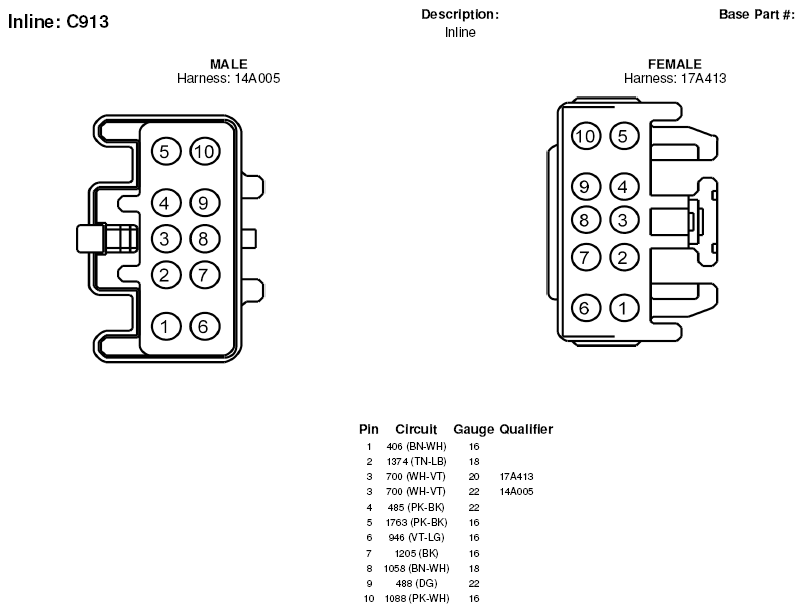

Fig 31: Inline Connector End View (C913)

G05179549

Courtesy of FORD MOTOR CO.

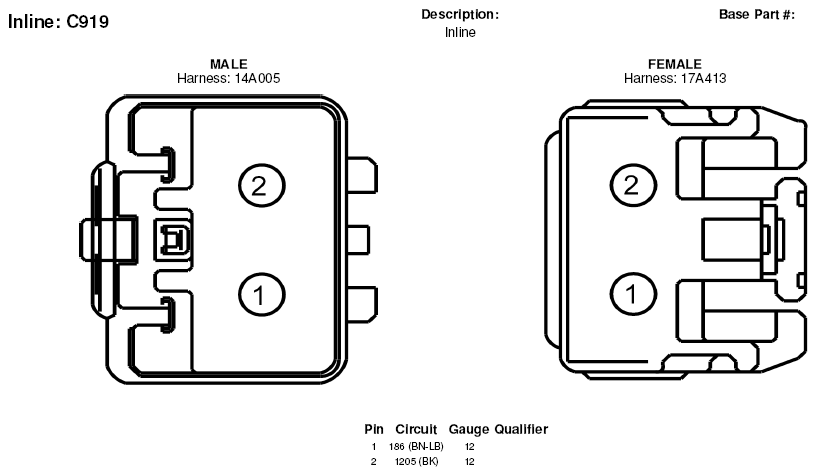

Fig 32: Inline Connector End View (C919)

G05179550

Courtesy of FORD MOTOR CO.

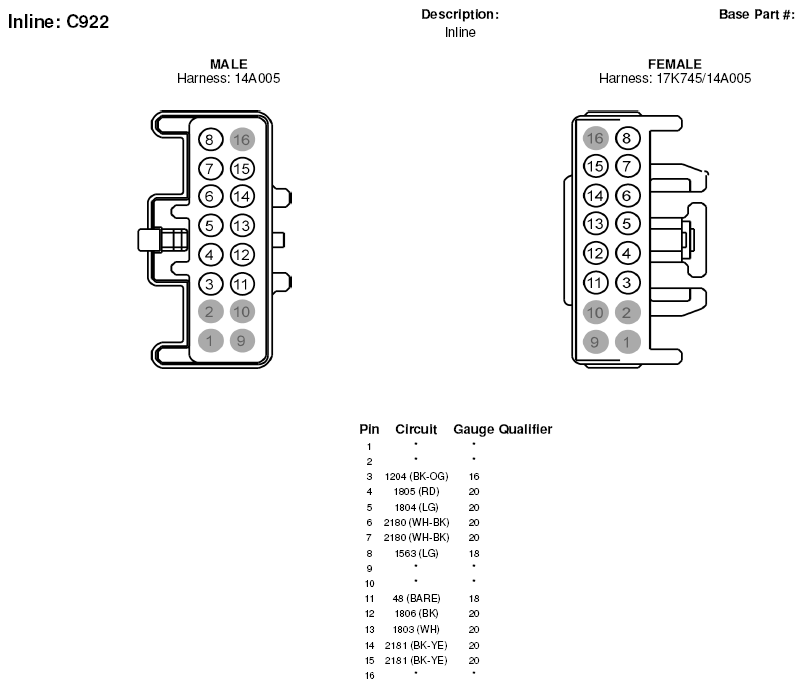

Fig 33: Inline Connector End View (C922)

G05179552

Courtesy of FORD MOTOR CO.

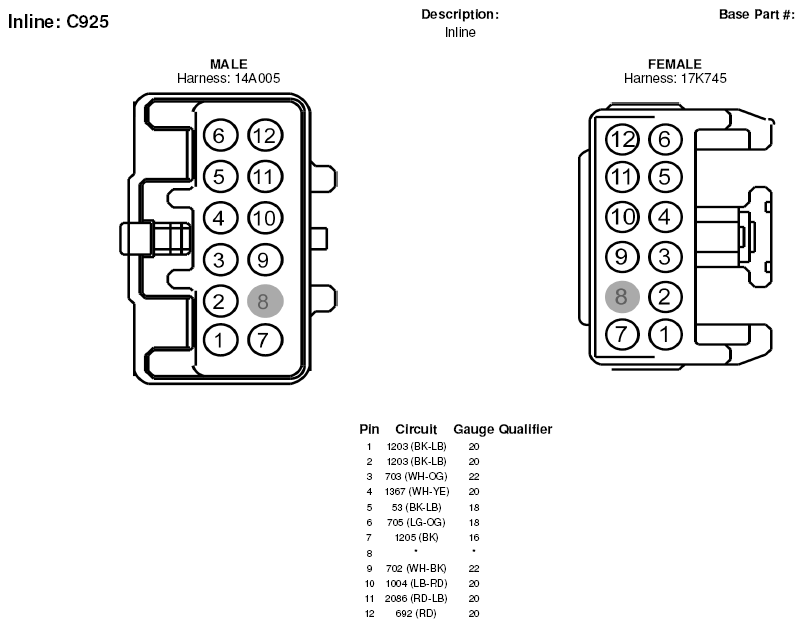

Fig 34: Inline Connector End View (C925)

G05179553

Courtesy of FORD MOTOR CO.

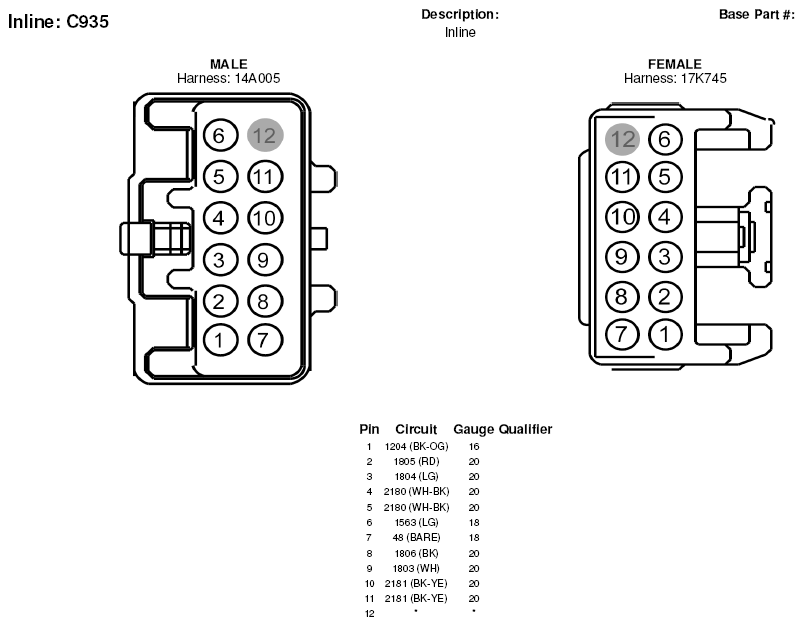

Fig 35: Inline Connector End View (C935)

G05179556

Courtesy of FORD MOTOR CO.

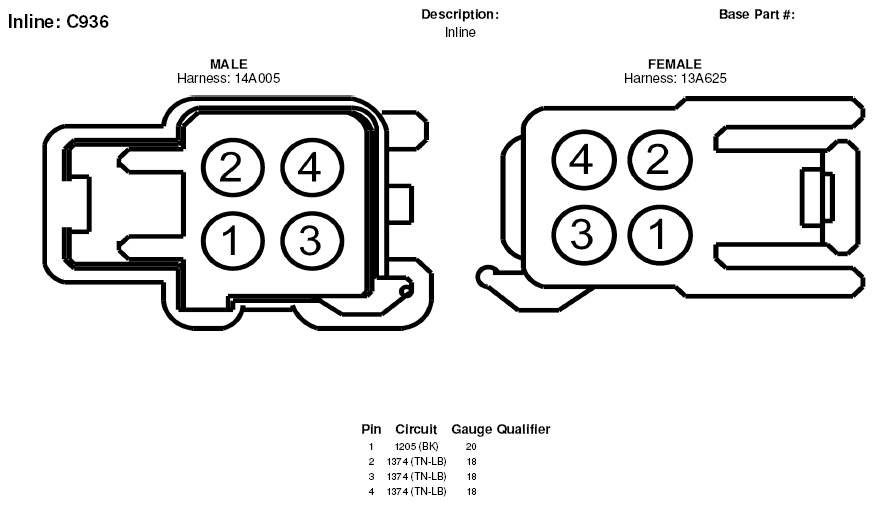

Fig 36: Inline Connector End View (C936)

G05179557

Courtesy of FORD MOTOR CO.

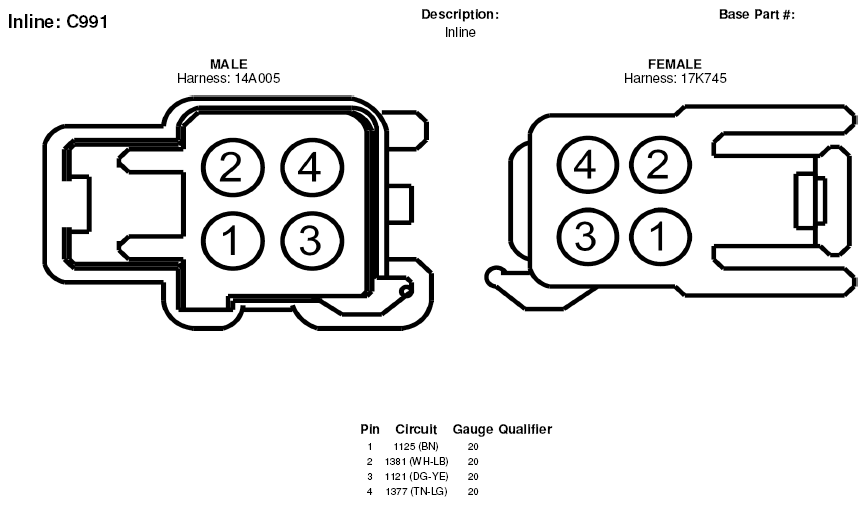

Fig 37: Inline Connector End View (C991)

G05179561

Courtesy of FORD MOTOR CO.

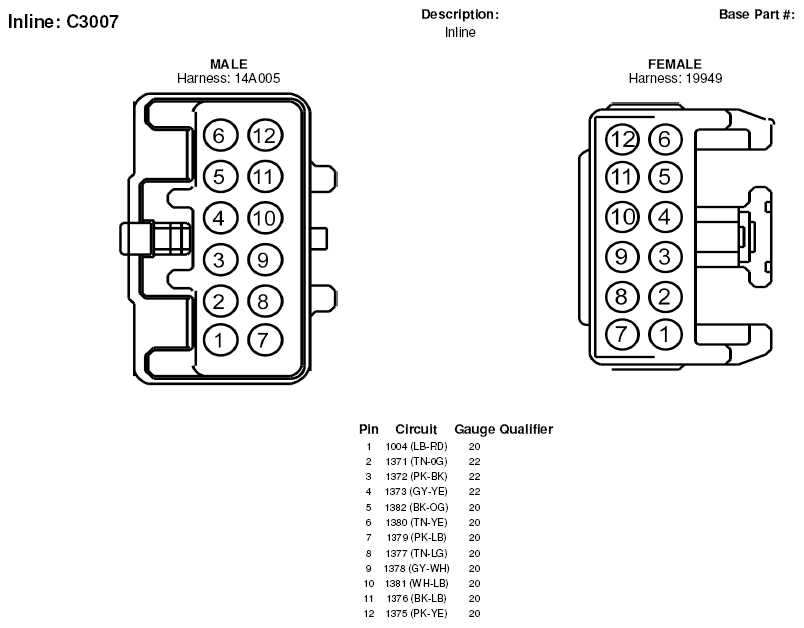

Fig 38: Inline Connector End View (C3007)

G05179617

Courtesy of FORD MOTOR CO.

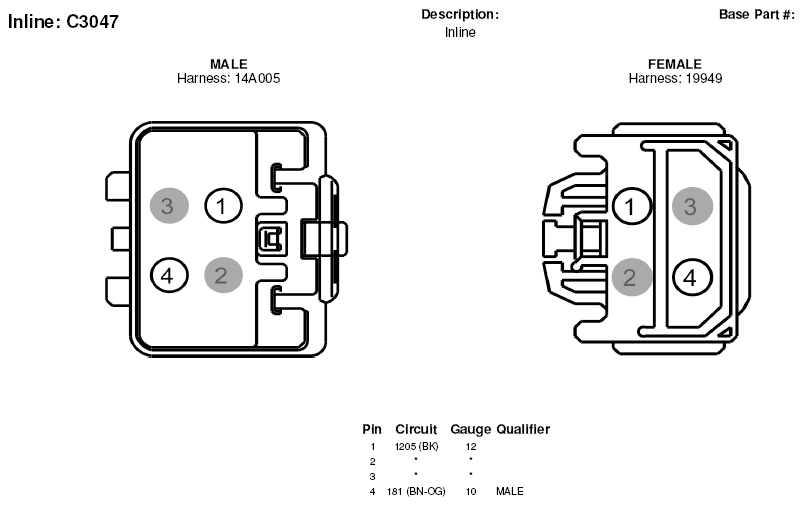

Fig 39: Inline Connector End View (C3047)

G05179622

Courtesy of FORD MOTOR CO.

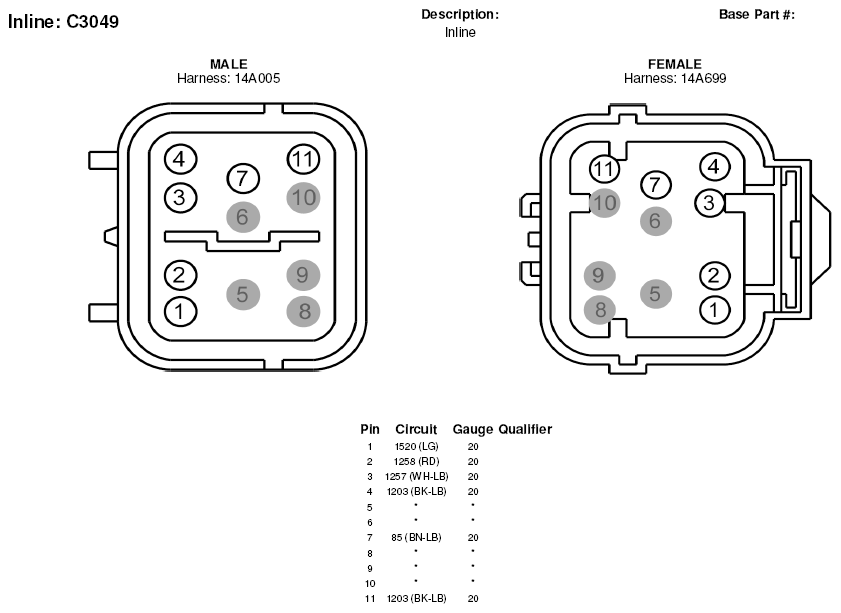

Fig 40: Inline Connector End View (C3049)

G05179623

Courtesy of FORD MOTOR CO.

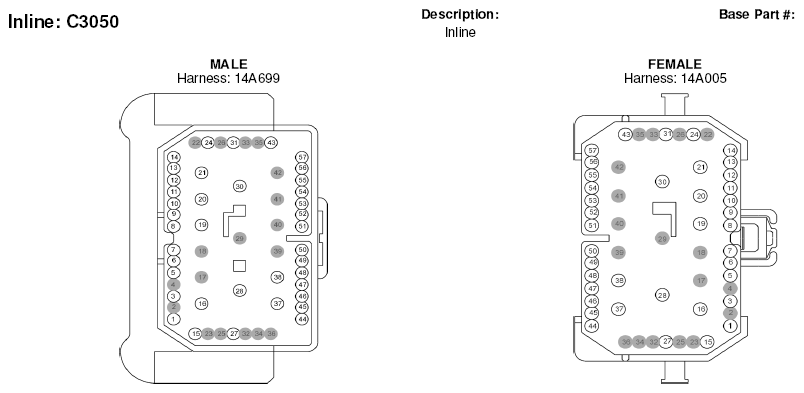

Fig 41: Inline Connector End View (C3050) (1 Of 2)

G05179624

Courtesy of FORD MOTOR CO.

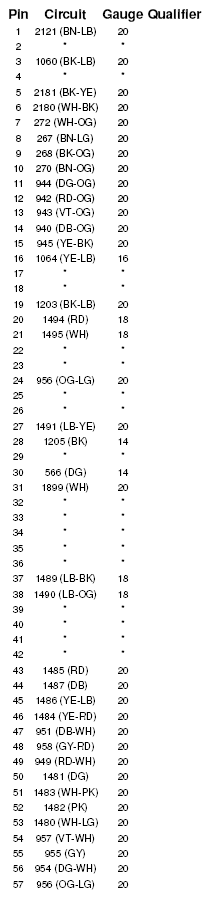

Fig 42: Inline Connector End View (C3050) (2 Of 2)

G05179625

Courtesy of FORD MOTOR CO.
