Differential Electronic Module Connector

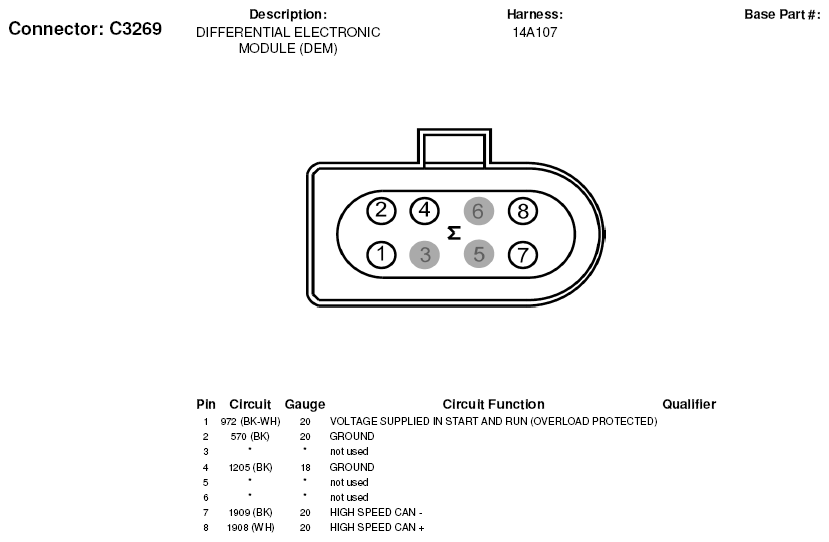

Fig 1: Differential Electronic Module Connector End View (C3269)

G05179648

Courtesy of FORD MOTOR CO.
