Passive Antitheft Transceiver Connector

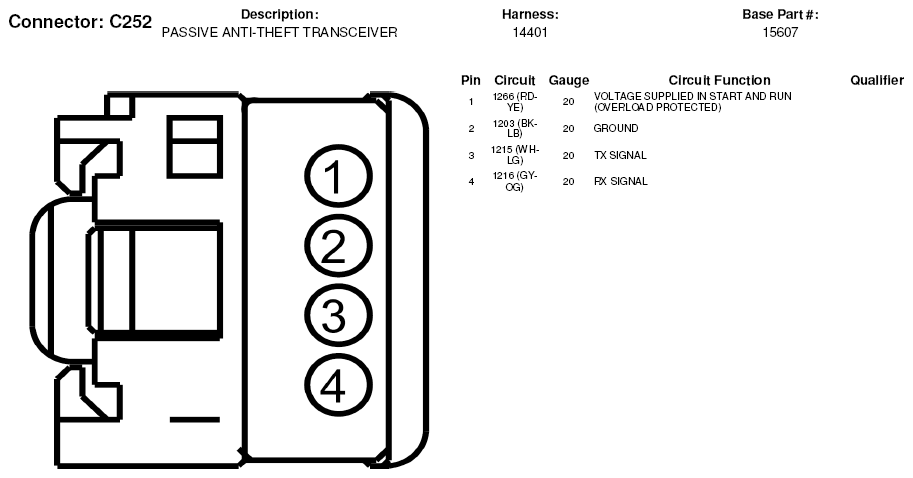

Fig 1: Passive Antitheft Transceiver Connector End View (C252)

G05179449

Courtesy of FORD MOTOR CO.
