Valve Cover - RH: Notes

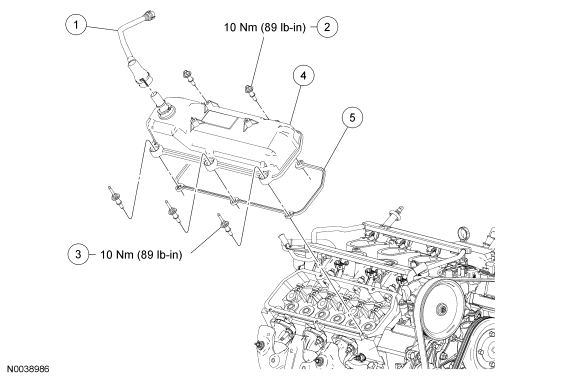

Fig 1: Exploded View Of Right Valve Cover With Torque Specifications
GF0033023Courtesy of FORD MOTOR CO.
Item Part Number Description
1 6C342 Crankcase vent hose
2 N807442 Valve cover bolt (2 required)
3 N807443 Valve cover stud bolt (3 required)
4 6582 RH valve cover
5 6584 RH valve cover gasket
