Coolant Pump: Notes
Special Tools
| Illustration | Tool Name | Tool Number |
|---|---|---|
| Engine Lift Bracket Set | 303-D095 (D94L-6001-A) |
Material
| Item | Specification |
|---|---|
| Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color) |
WSS-M97B51-A1 |

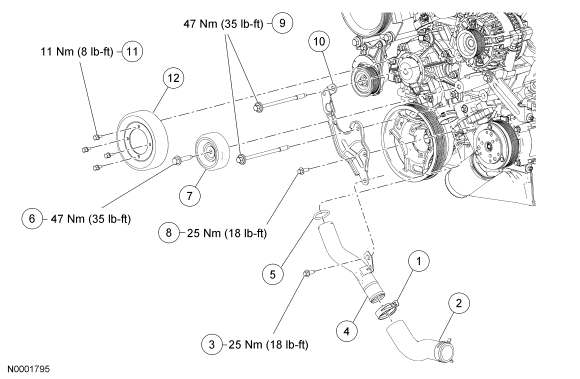

| Item | Part Number | Description |
|---|---|---|
| 1 | 8287 | Clamp |
| 2 | 8286 | Lower radiator hose |
| 3 | N605905 | Coolant pump inlet pipe bolt |
| 4 | 8291 | Coolant pump inlet pipe |
| 5 | 87061 | Coolant pump inlet pipe O-ring seal |
| 6 | - | Idler pulley bolt (part of 6C348) |
| 7 | 6C348 | Idler pulley |
| 8 | N806342 | Generator bracket brace bolt (2 required) |
| 9 | W704697 | Generator bracket brace bolts (2 required) |
| 10 | 19N589 | Generator bracket brace |
| 11 | N808281 | Coolant pump pulley bolt (4 required) |
| 12 | 8A528 | Coolant pump pulley |

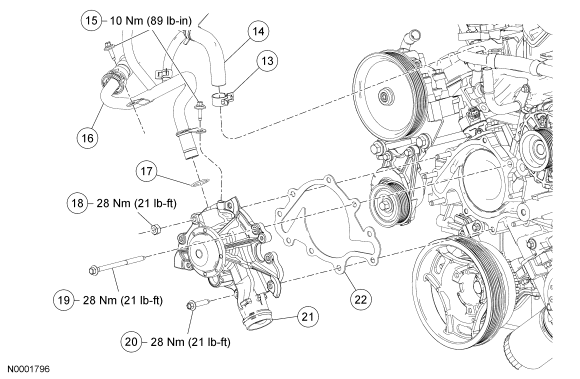

| Item | Part Number | Description |
|---|---|---|
| 13 | 8287 | Clamp (part of 8A582) |
| 14 | 8A582 | Coolant bypass hose |
| 15 | W708650 | Coolant pump outlet tube bolts |
| 16 | 18663 | Coolant pump outlet tube |
| 17 | - | Coolant pump outlet tube O-ring seal (part of 18663) |
| 18 | N804758 | Coolant pump-to-engine front cover nut (5 required) |
| 19 | N808217 | Coolant pump-to-engine front cover bolt |
| 20 | N605908 | Coolant pump-to-engine front cover bolt (3 required) |
| 21 | 8501 | Coolant pump |
| 22 | 8507 | Coolant pump gasket |
