Bypass Tube: Notes

Material

Item	Specification
Motorcraft Premium Gold Engine Coolant with Bittering Agent (US only) VC-7-B (US); CVC-7-A (Canada); or equivalent (yellow color)	WSS-M97B51-A1

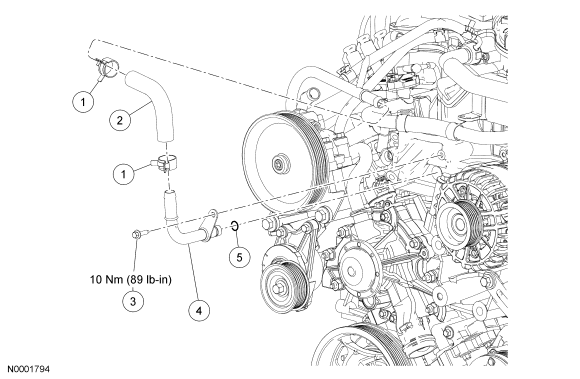

Fig 1: Exploded View Of Bypass Tube With Torque Specifications

GF0033216

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	8287	Clamps (2 required) (part of 8A582)
2	8A582	Bypass hose
3	N605892	Bypass tube-to-intake manifold bolt
4	8548	Bypass tube
5	-	O-ring seal (part of 8548)
