Exhaust Manifold - LH: Notes

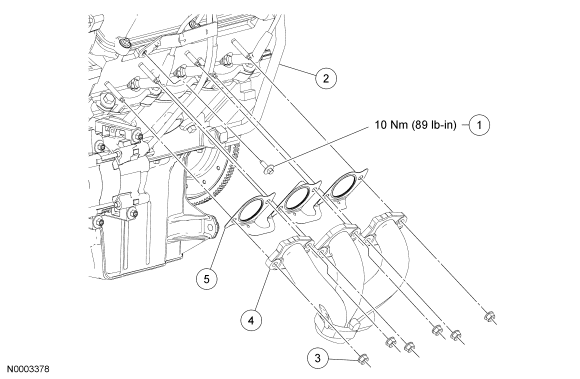

Fig 1: Exploded View Of Left Exhaust Manifold With Torque Specifications
GF0033062Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W708650 Oil level indicator tube bolt
2 9D477 Exhaust gas recirculation (EGR) tube-to-exhaust manifold nut
3 W701706 Exhaust manifold nut (6 required)
4 9430 LH exhaust manifold
5 9448 LH exhaust manifold gasket
