Quarter Window Motor Connector
Quarter Window Motor Connector

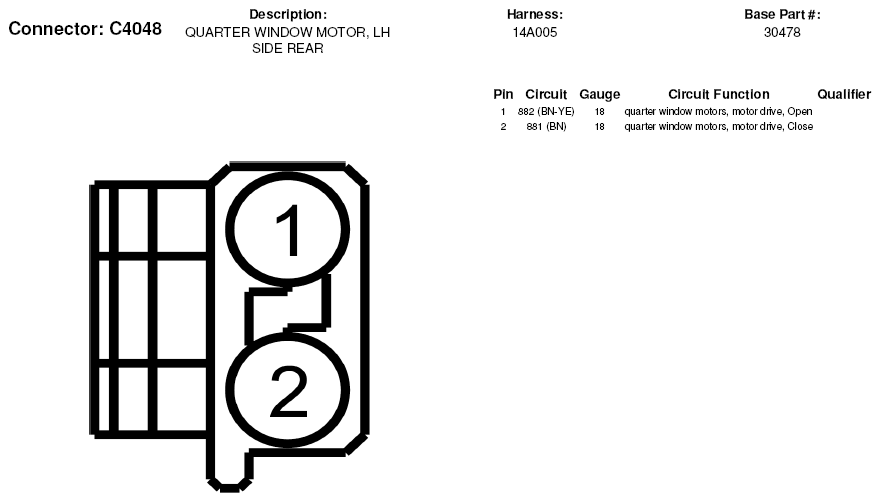

Fig 1: Quarter Window Motor Connector End View (C4048)
Courtesy of FORD MOTOR CO.

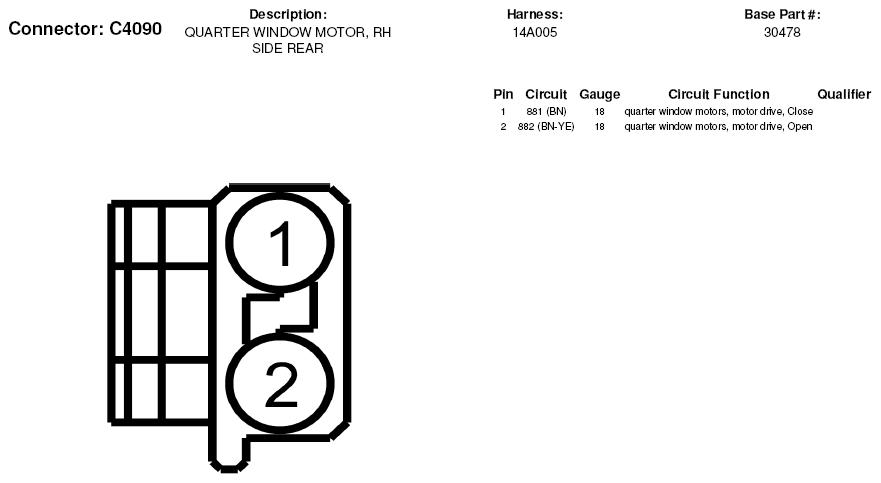

Fig 2: Quarter Window Motor Connector End View (C4090)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
