Driver Memory Seat Rear Connector
Driver Memory Seat Rear Connector

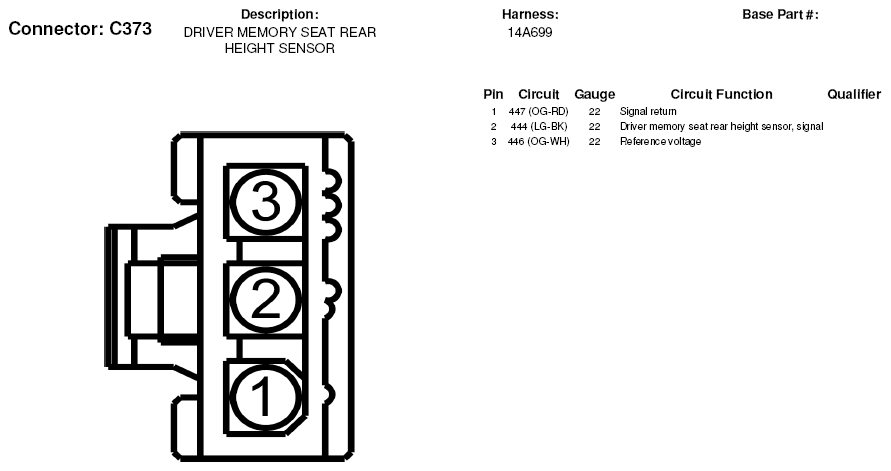

Fig 1: Driver Memory Seat Rear Connector End View (C373)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
