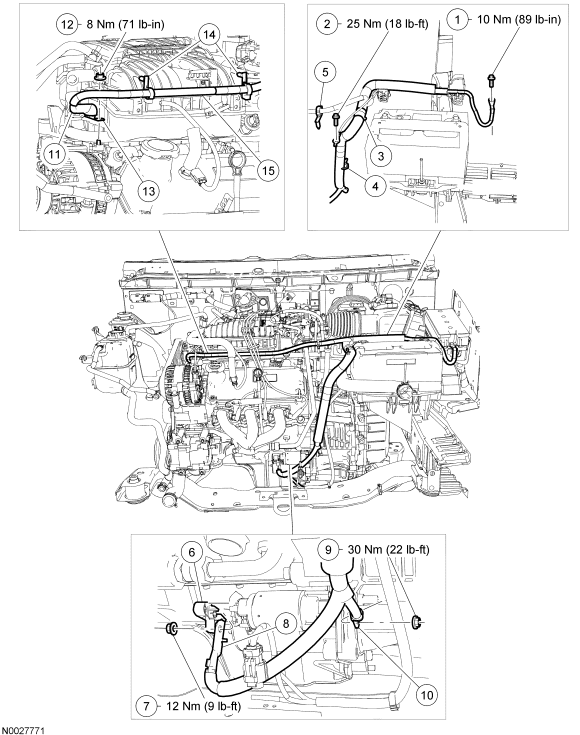

| 1 |
- |
Bussed electrical center (BEC) terminal bolt |
| 2 |
- |
Battery ground cable bolt |
| 3 |
- |
Cable locator (part of 14B060) |
| 4 |
- |
Cable locator (part of 14B060) |
| 5 |
- |
Cable locator (part of 14B060) |
| 6 |
11N087 |
Starter motor solenoid terminal cover |
| 7 |
N621939 |
Starter motor solenoid battery cable nut |
| 8 |
- |
Starter motor solenoid battery cable (part of 14B060) |
| 9 |
W520514- S437M |
Battery ground cable nut |
| 10 |
14B060 |
Battery ground cable (part of 14B060) |
| 11 |
- |
Generator B+ cable boot (part of 14B060) |
| 12 |
10300 |
Generator B+ cable nut |
| 13 |
- |
Generator B+ cable (part of 14B060) |
| 14 |
- |
Generator B+ cable locators (part of 14B060) |
| 15 |
14B060 |
Battery cable assembly |
