Side Impact Sensor: Notes

NOTE: Carpet removed for clarity.

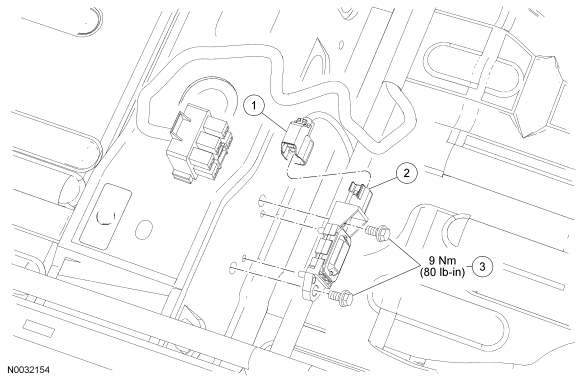

Fig 1: Side Impact Sensor Replacement Components (With Torque Specification)
GF0039169Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Side impact sensor electrical connector (part of 14014)
2 14B342 Side impact sensor
3 W505255 Side impact sensor bolts (2 required)
