Side Air Bag Module: Notes
NOTE:

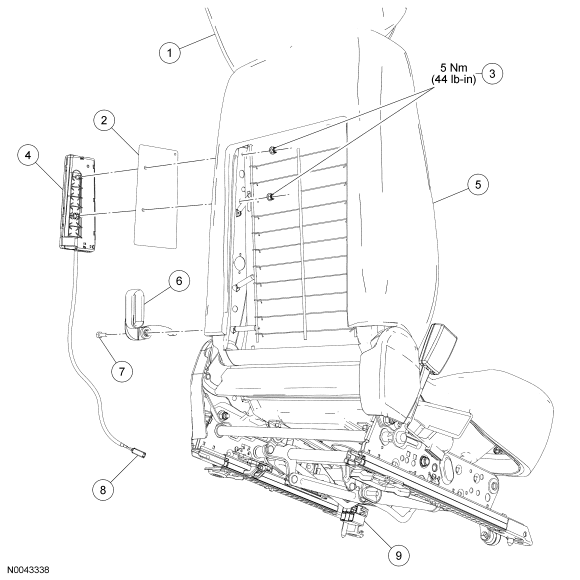

Driver side air bag module shown, passenger similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 64416 | Backrest trim cover |
| 2 | 611C10 | Side air bag module protective cover |
| 3 | W520201 | Side air bag module nuts (2 required) |
| 4 | 611D11 | Side air bag module |
| 5 | 64811 | Backrest foam pad |
| 6 | 62763 | Backrest release lever (three door only) |
| 7 | - | Backrest release lever screw (three door only) |
| 8 | - | Side air bag module electrical connector (part of 61D11) |
| 9 | - | Seat bulkhead connector |
