Front Impact Severity Sensor: Notes

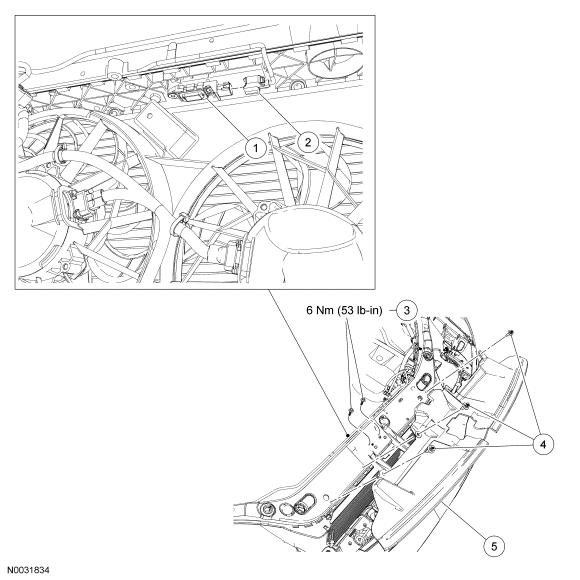

Fig 1: Front Impact Severity Sensor Replacement Components (With Torque Specification)
GF0039146Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14B006 Front impact severity sensor
2 - Front impact severity sensor electrical connector (part of 14K733)
3 W703483 Front impact severity sensor bolts (2 required)
4 1007932 Pin-type retainers (3 required)
5 16A238 Radiator air deflector
