Driver Air Bag Module: Notes

Material

Item Specification
Electrical Grease
XG-12		 WSB-M1C239-A

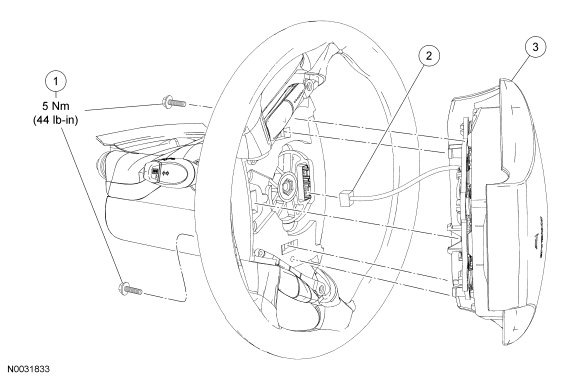

Fig 1: Driver Air Bag Module Replacement Components (With Torque Specification)
GF0039145Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Driver air bag module bolts (2 required)
2 - Driver air bag module electrical connector (part of 043B13)
3 043B13 Driver air bag module
