Wiper/Washer Switch Connector
Wiper/Washer Switch Connector

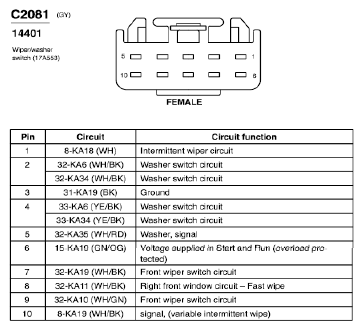

Fig 1: Wiper/Washer Switch Connector End View (C2081)
Courtesy of FORD MOTOR CO.

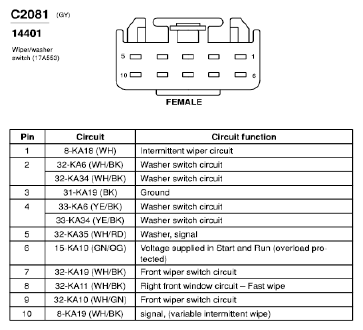

Fig 2: Wiper/Washer Switch Connector End View (C2081)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
