Radio Connector
Radio Connector

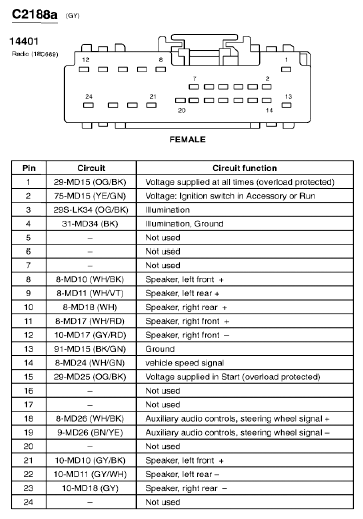

Fig 1: Radio Connector End View (C2188a)
Courtesy of FORD MOTOR CO.
Fig 2: Radio Connector End View (C2188b)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
