Inline Connectors

Fig 1: Inline Connector End View (C133)

G07850358

Courtesy of FORD MOTOR CO.

Fig 2: Inline Connector End View (C134)

G07850359

Courtesy of FORD MOTOR CO.

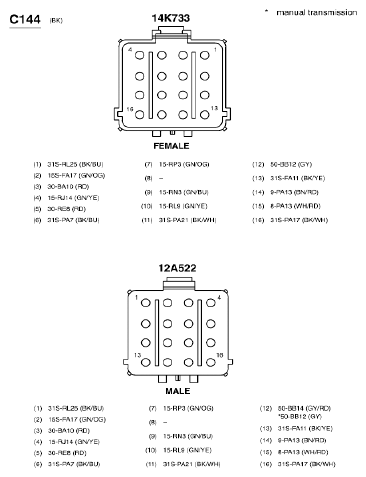

Fig 3: Inline Connector End View (C144)

G07850362

Courtesy of FORD MOTOR CO.

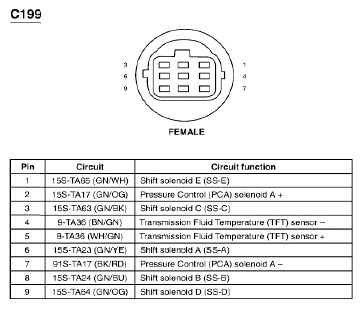

Fig 4: Inline Connector End View (C199)

G07850377

Courtesy of FORD MOTOR CO.

Fig 5: Inline Connector End View (C210)

G05180436

Courtesy of FORD MOTOR CO.

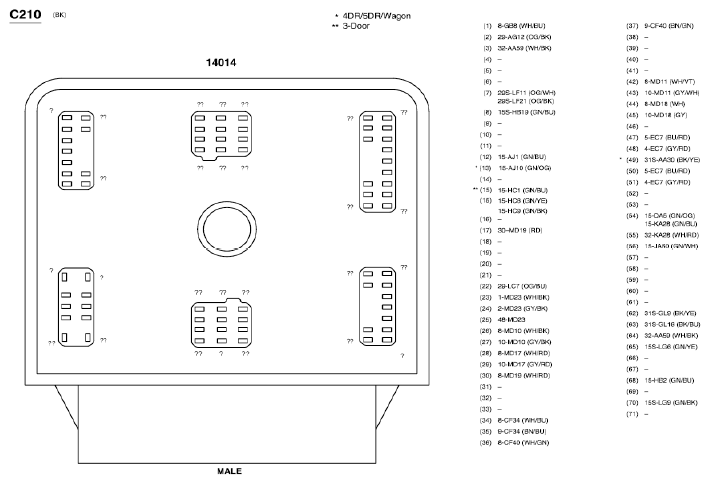

Fig 6: Inline Connector End View (C210)

G05180437

Courtesy of FORD MOTOR CO.

Fig 7: Inline Connector End View (C211a)

G05180438

Courtesy of FORD MOTOR CO.

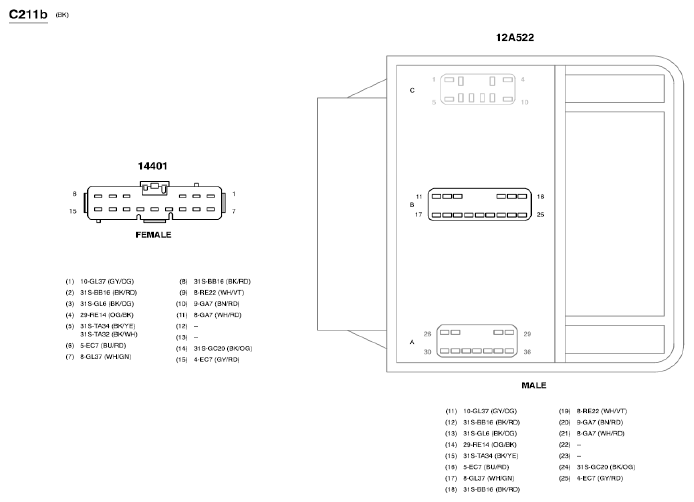

Fig 8: Inline Connector End View (C211b)

G05180439

Courtesy of FORD MOTOR CO.

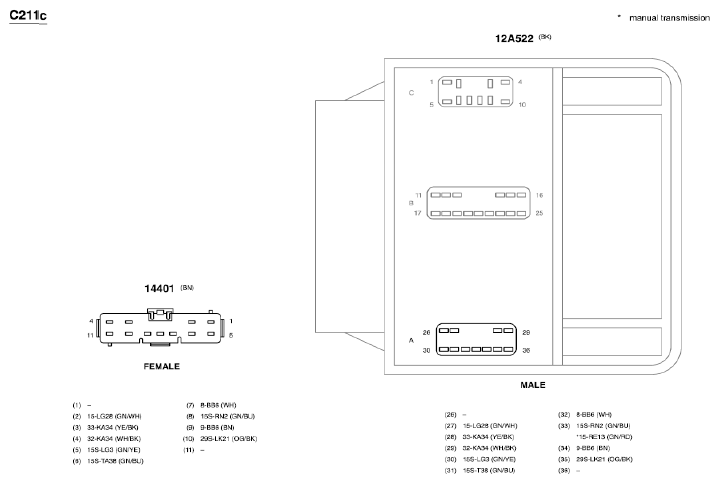

Fig 9: Inline Connector End View (C211c)

G05180440

Courtesy of FORD MOTOR CO.

Fig 10: Inline Connector End View (C212)

G07850385

Courtesy of FORD MOTOR CO.

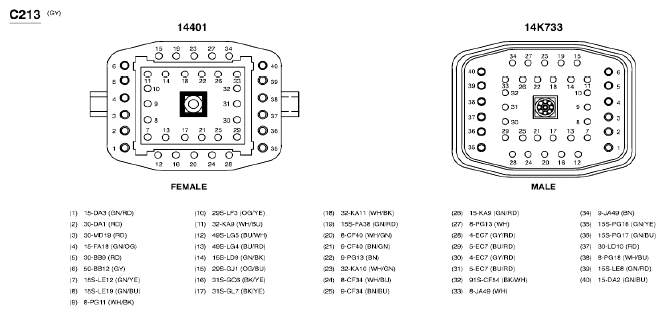

Fig 11: Inline Connector End View (C213)

G07850386

Courtesy of FORD MOTOR CO.

Fig 12: Inline Connector End View (C311c)

G07850408

Courtesy of FORD MOTOR CO.

Fig 13: Inline Connector End View (C312c)

G07850413

Courtesy of FORD MOTOR CO.

Fig 14: Inline Connector End View (C312d)

G07850414

Courtesy of FORD MOTOR CO.

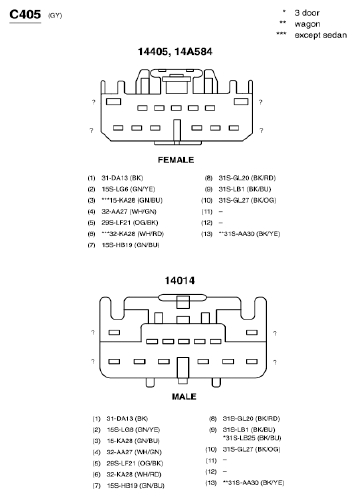

Fig 15: Inline Connector End View (C405)

G05180455

Courtesy of FORD MOTOR CO.

Fig 16: Inline Connector End View (C408)

G07850424

Courtesy of FORD MOTOR CO.

Fig 17: Inline Connector End View (C422)

G07850425

Courtesy of FORD MOTOR CO.

Fig 18: Inline Connector End View (C423)

G07850426

Courtesy of FORD MOTOR CO.

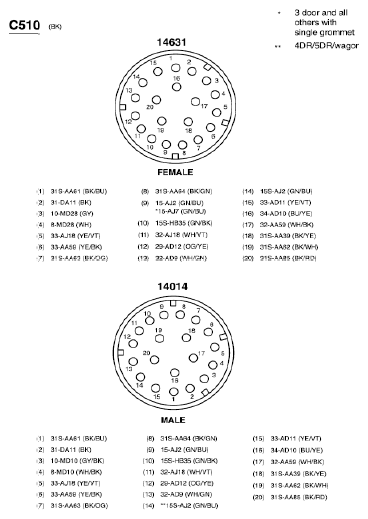

Fig 19: Inline Connector End View (C510)

G07850449

Courtesy of FORD MOTOR CO.

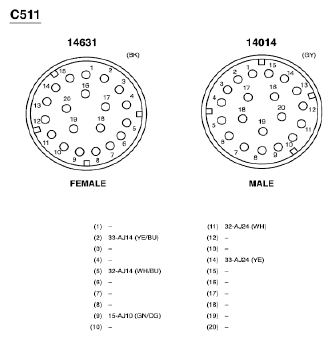

Fig 20: Inline Connector End View (C511)

G07850450

Courtesy of FORD MOTOR CO.

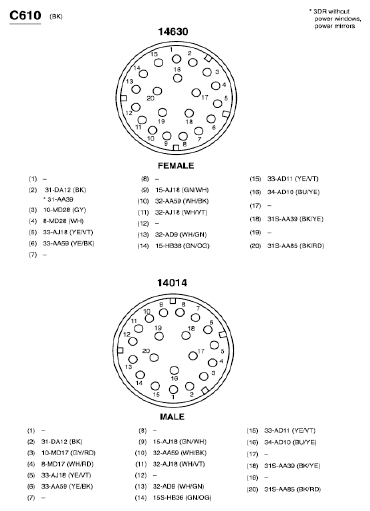

Fig 21: Inline Connector End View (C610)

G07850463

Courtesy of FORD MOTOR CO.

Fig 22: Inline Connector End View (C700)

G07850467

Courtesy of FORD MOTOR CO.

Fig 23: Inline Connector End View (C800)

G07850473

Courtesy of FORD MOTOR CO.

Fig 24: Inline Connector End View (C913)

G07850479

Courtesy of FORD MOTOR CO.

Fig 25: Inline Connector End View (C1019)

G07850484

Courtesy of FORD MOTOR CO.

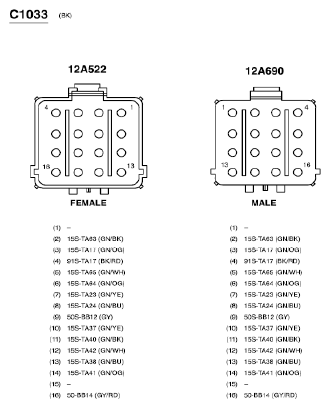

Fig 26: Inline Connector End View (C1033)

G07850488

Courtesy of FORD MOTOR CO.

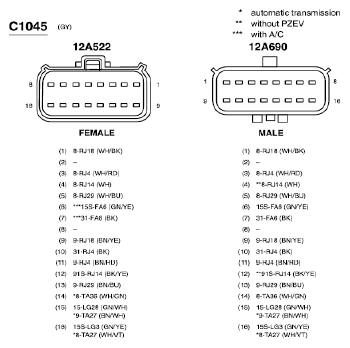

Fig 27: Inline Connector End View (C1045)

G07850492

Courtesy of FORD MOTOR CO.

Fig 28: Inline Connector End View (C1046)

G07850493

Courtesy of FORD MOTOR CO.

Fig 29: Inline Connector End View (C1047)

G07850494

Courtesy of FORD MOTOR CO.

Fig 30: Inline Connector End View (C1147)

G07850510

Courtesy of FORD MOTOR CO.

Fig 31: Inline Connector End View (C1148)

G07850511

Courtesy of FORD MOTOR CO.

Fig 32: Inline Connector End View (C2262)

G07850542

Courtesy of FORD MOTOR CO.

Fig 33: Inline Connector End View (C3249)

G07850561

Courtesy of FORD MOTOR CO.
