Suction Accumulator: Notes

Material

Item Specification
PAG Refrigerant Compressor Oil (R-134a Systems)
YN-12-D		 WSH-M1C231-B

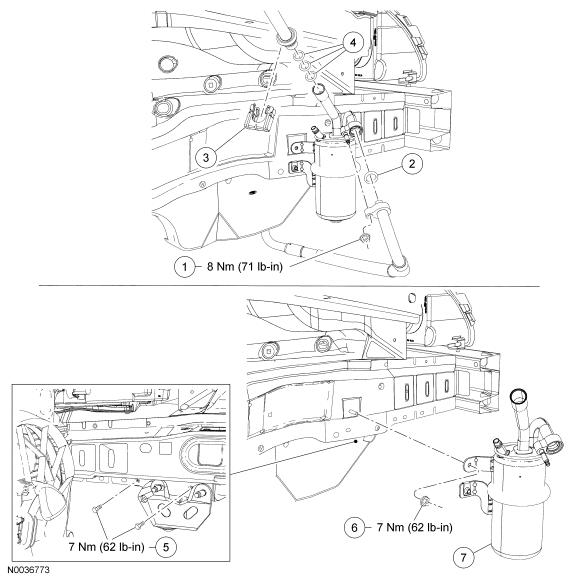

Fig 1: Suction Accumulator With Torque Specifications
GF0040443Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520413-S441 Nut
2 19E889 O-ring
3 19E746 Clip
4 19E889 O-rings (3 required)
5 W700099-S309 Bolts (3 required)
6 W706131-S441 Nut
7 19C836 Suction accumulator
