Battery Cables: Notes

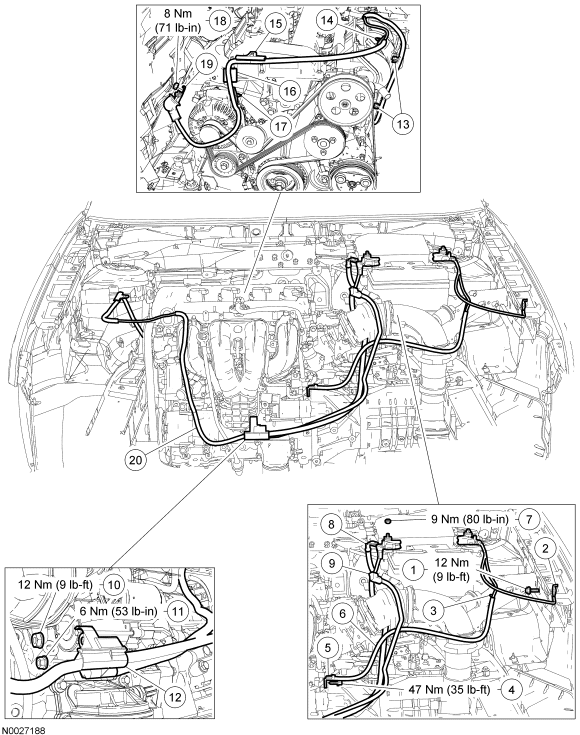

Parts Number Description Chart
| Item | Part Number | Description |
|---|---|---|
| 1 | W705661-S | Battery ground cable body terminal bolt |
| 2 | - | Battery ground cable body terminal (part of 14301) |
| 3 | - | Battery ground cable locator (part of 14301) |
| 4 | W500521-S | Battery ground cable engine terminal bolt |
| 5 | - | Battery ground cable engine terminal (part of 14301) |
| 6 | 14301 | Battery ground cable |
| 7 | - | Battery junction box (BJB) terminal nut (part of 14300) |
| 8 | - | BJB terminal (on positive battery terminal) (part of 14K733) |
| 9 | - | Positive battery cable connector (part of 14300) |
| 10 | W701596-S | Positive battery cable starter solenoid terminal nut |
| 11 | W704141-S | Positive battery cable starter solenoid wire terminal nut |
| 12 | - | Starter solenoid terminals (part of 14300) |
| 13 | - | Positive battery cable clips (2 required) (part of 14300) |
| 14 | - | Positive battery cable locator (part of 14300) |
| 15 | - | Positive battery cable shield locators (part of 14300) |
| 16 | - | Positive battery cable clip (part of 14300) |
| 17 | - | Positive battery cable locator (part of 14300) |
| 18 | - | Generator B+ terminal nut (part of 10300) |
| 19 | - | Generator B+ terminal (part of 14300) |
| 20 | 14300 | Positive battery cable |

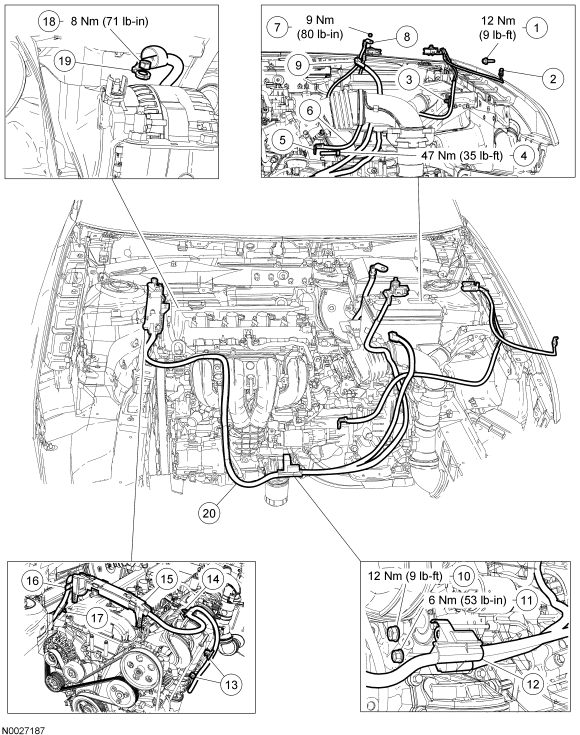

Parts Number Description Chart
| Item | Part Number | Description |
|---|---|---|
| 1 | W705661-S | Battery ground cable body terminal bolt |
| 2 | - | Battery ground cable body terminal (part of 14301) |
| 3 | - | Battery ground cable locator (part of 14301) |
| 4 | W500521-S | Battery ground cable engine terminal bolt |
| 5 | - | Battery ground cable engine terminal (part of 14301) |
| 6 | 14301 | Battery ground cable |
| 7 | - | Battery junction box (BJB) terminal nut (part of 14300) |
| 8 | - | BJB terminal (on positive battery terminal) (part of 14K733) |
| 9 | - | Positive battery cable connector (part of 14300) |
| 10 | W701596-S | Positive battery cable starter solenoid terminal nut |
| 11 | W704141-S | Positive battery cable starter solenoid wire terminal nut |
| 12 | - | Starter solenoid terminals (part of 14300) |
| 13 | - | Positive battery cable clips (2 required) (part of 14300) |
| 14 | - | Positive battery cable locator (part of 14300) |
| 15 | - | Positive battery cable portable hole harness locator (part of 14300) |
| 16 | - | Positive battery cable clip (part of 14300) |
| 17 | - | Positive battery cable locator (part of 14300) |
| 18 | - | Generator B+ terminal nut (part of 10300) |
| 19 | - | Generator B+ terminal (part of 14300) |
| 20 | 14300 | Positive battery cable |
