Engine Cooling Fan Resistor Connector

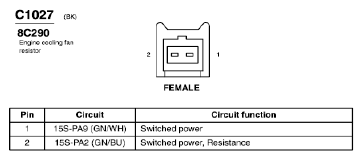

Fig 1: Engine Cooling Fan Resistor Connector End View (C1027)

G07850487

Courtesy of FORD MOTOR CO.
